SEAHAWK OUTBOARD
The North River Seahawk is as beautiful as it is functional. The hull is shaped and precision welded to increase strength and create a smooth seamless surface to maximize ride, engine efficiency and performance. The Deep Vee bottom shape, along with specially calibrated strakes, precision extruded chines and offshore bracket are responsible for the Seahawk’s quick planing, straight tracking and highly controlled turns. Fishing purists have long championed the extremely well-built Seahawk as the most comfortable smooth riding, spacious and stable fishing platform in its class.
LIFE IS BETTER IN A NORTH RIVER!

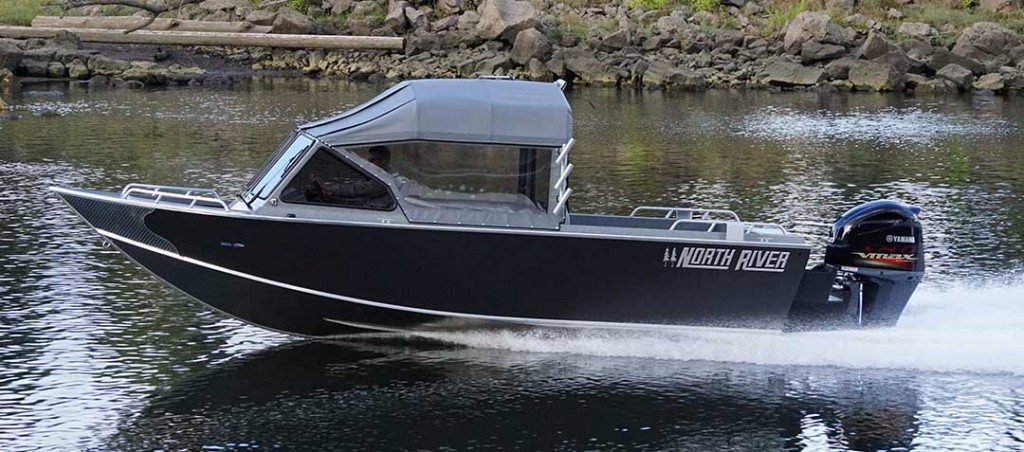

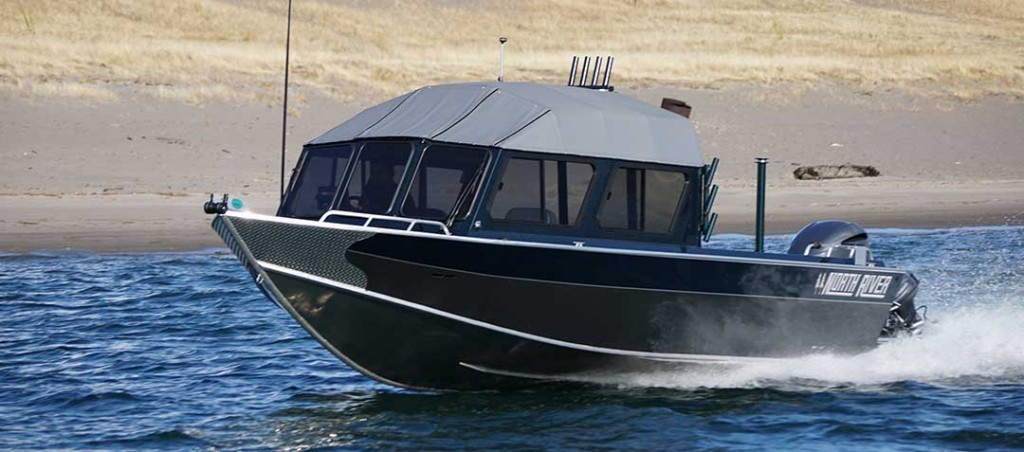

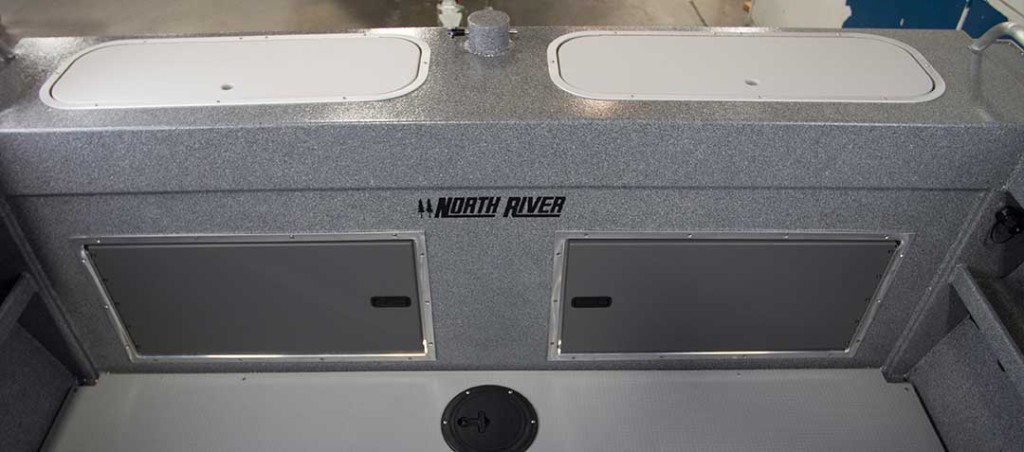

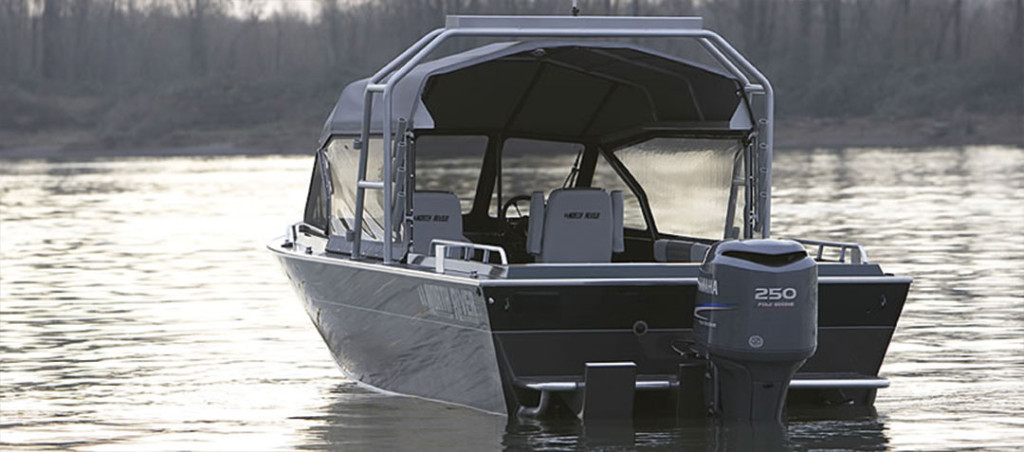

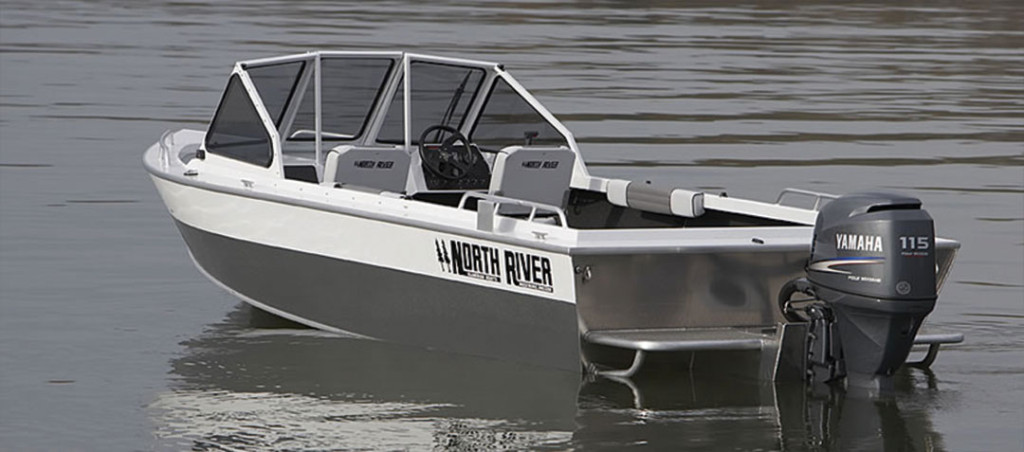

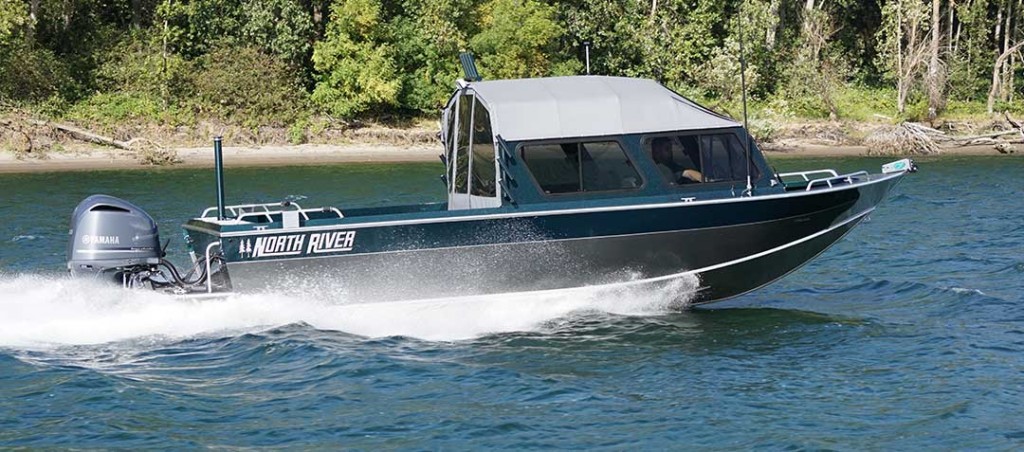

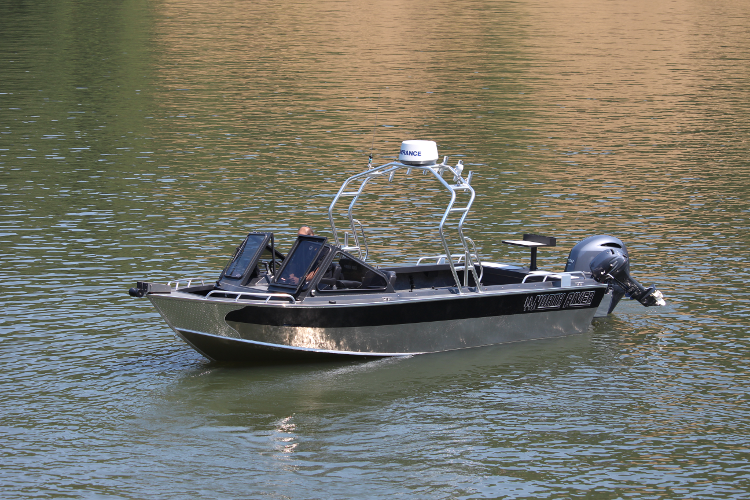

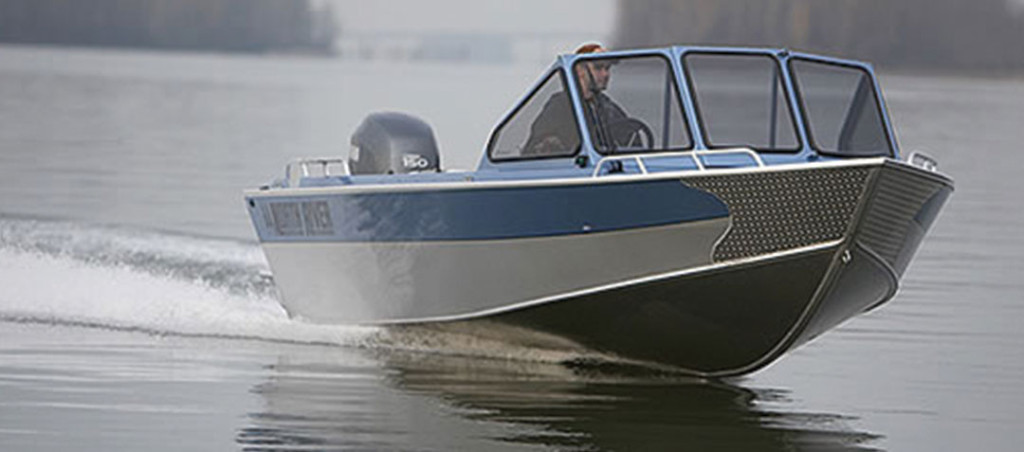

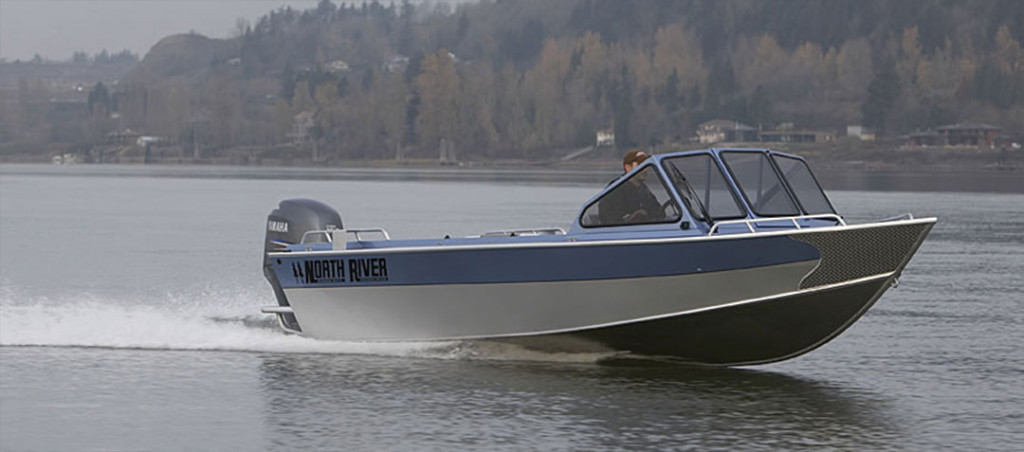

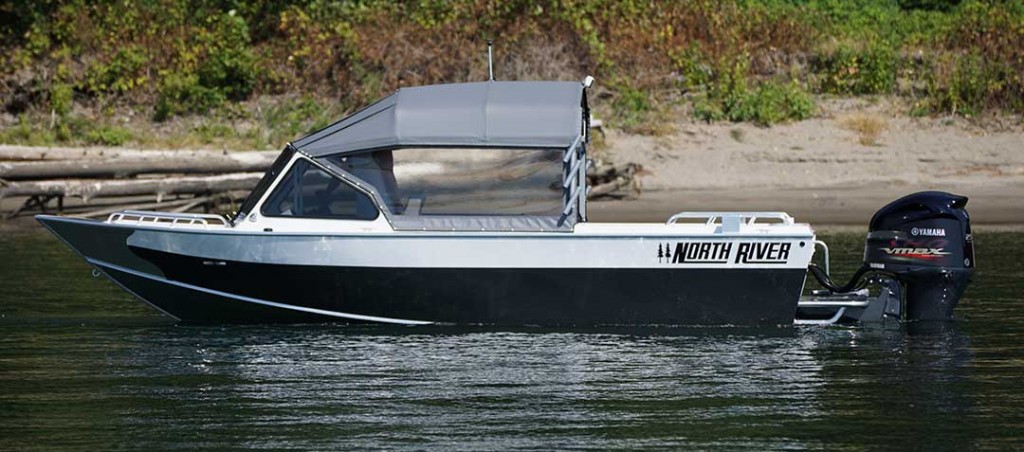

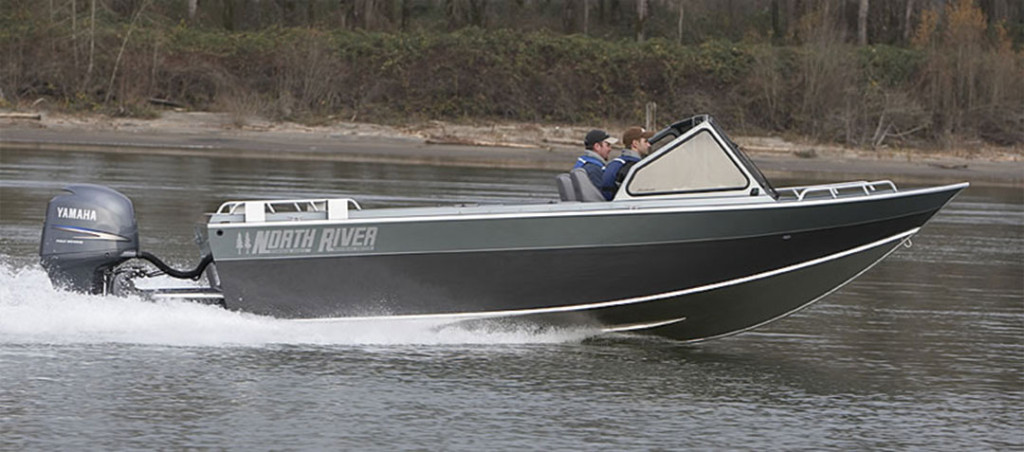

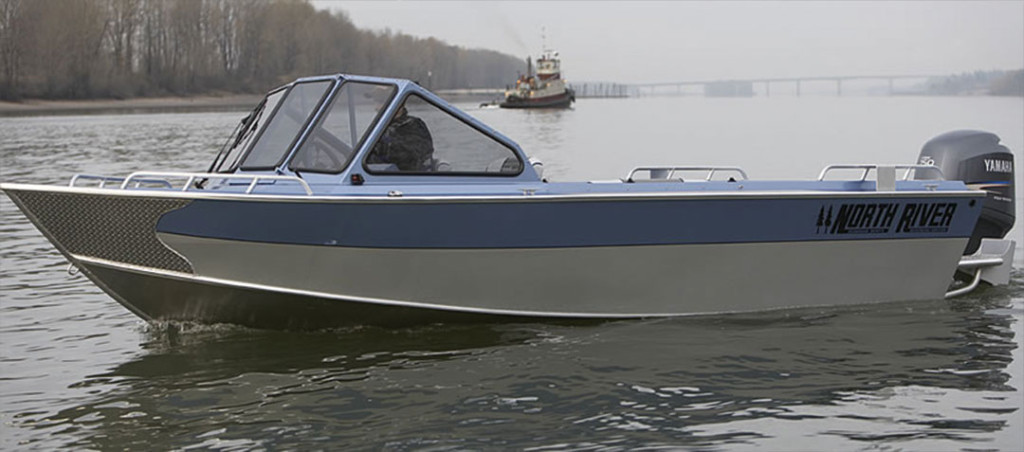

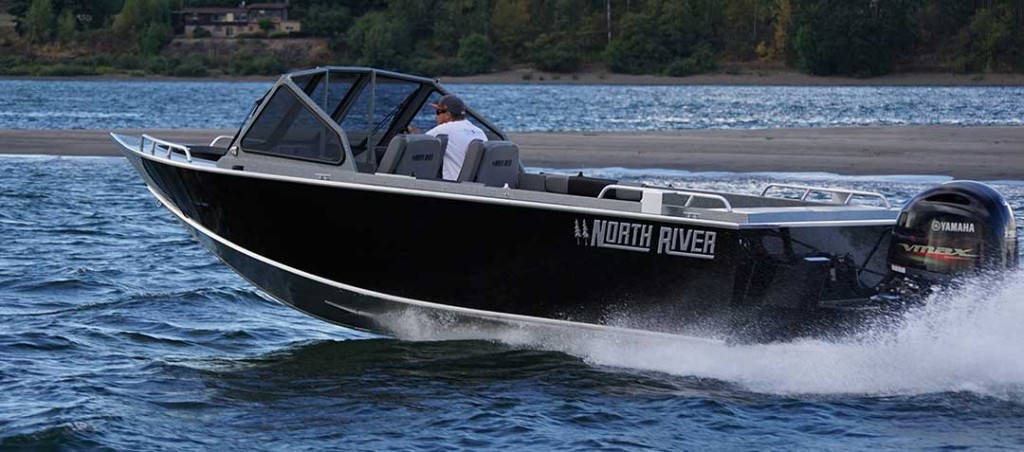

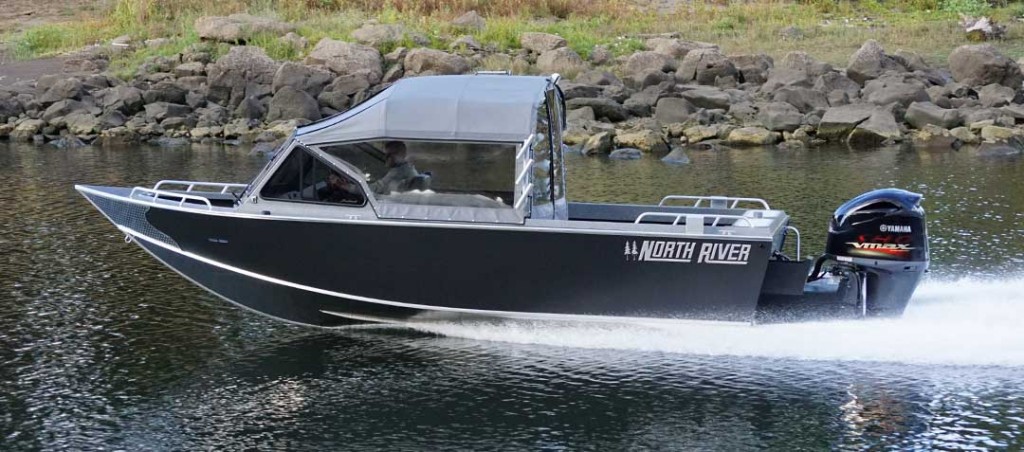

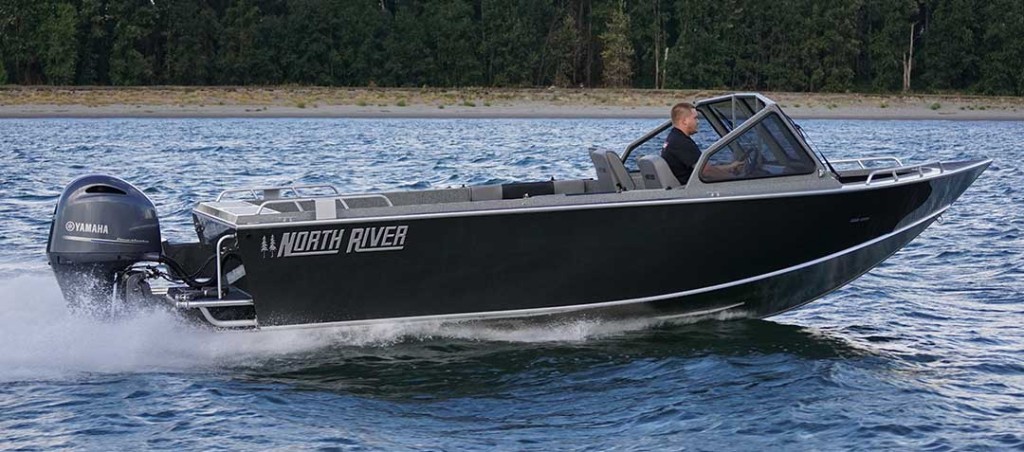

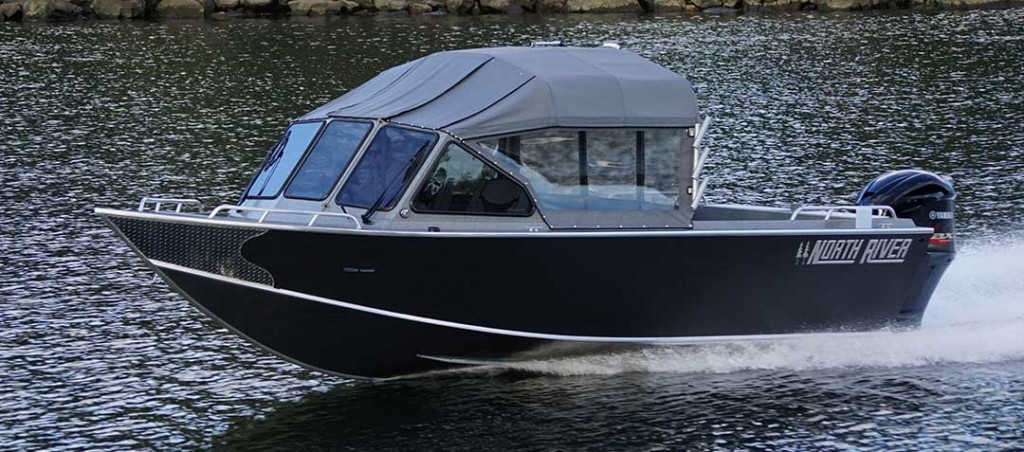

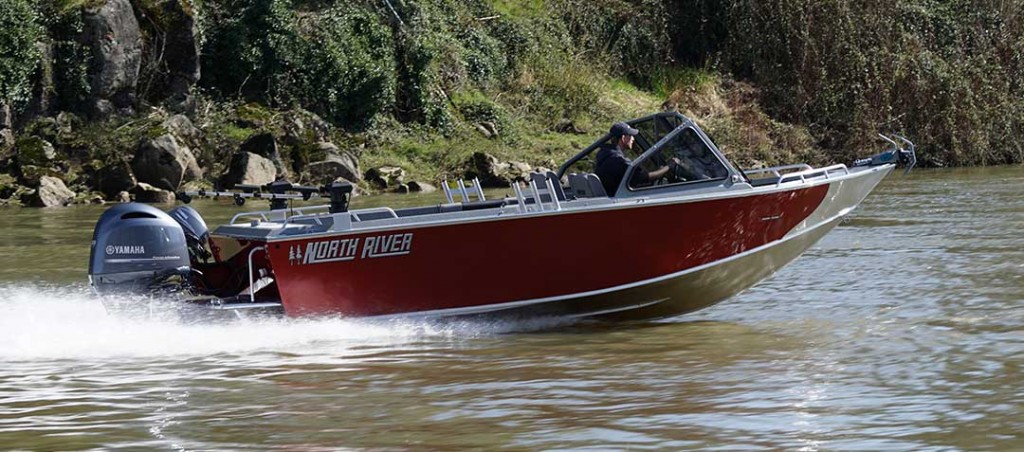

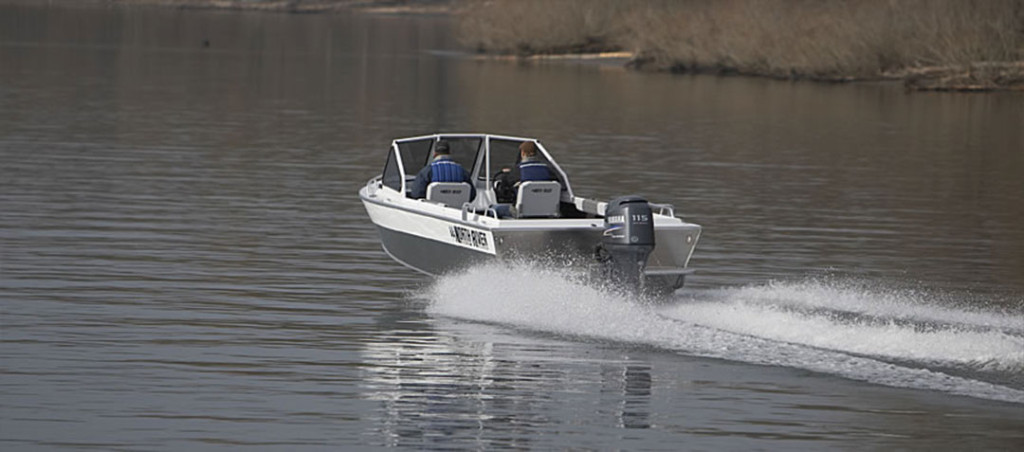

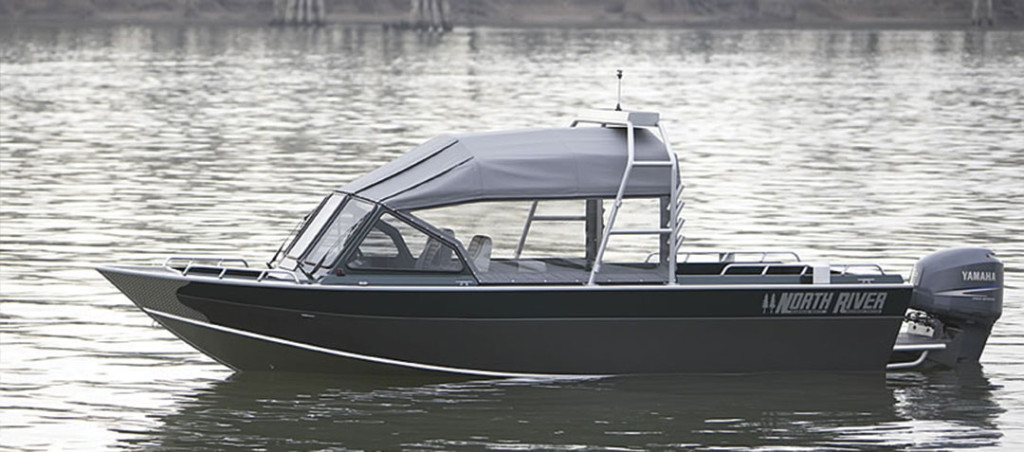

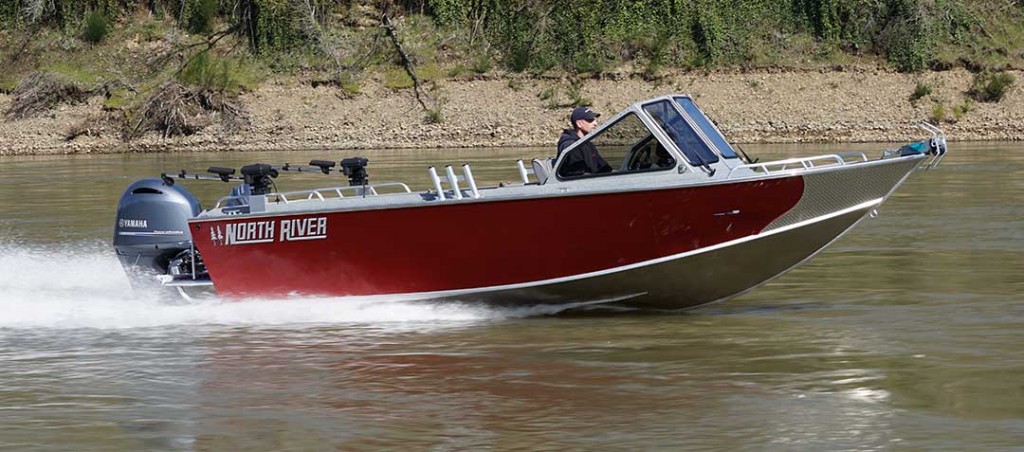

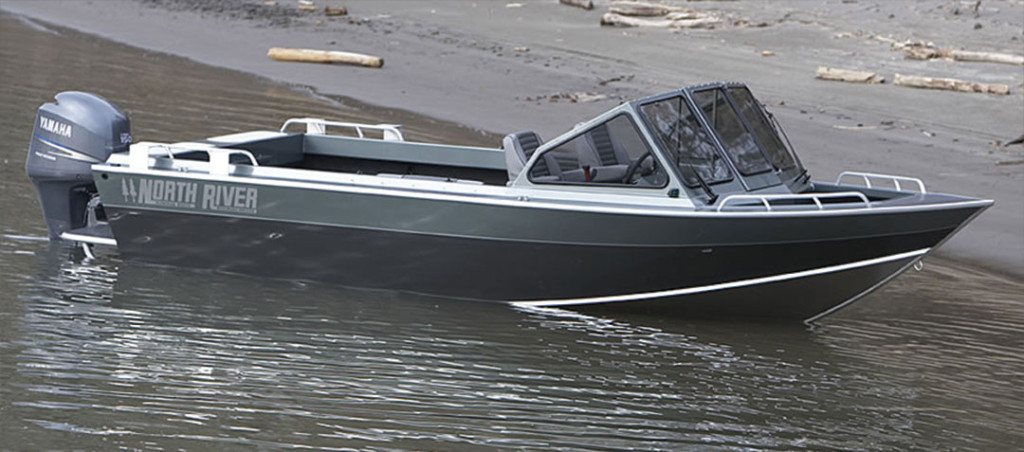

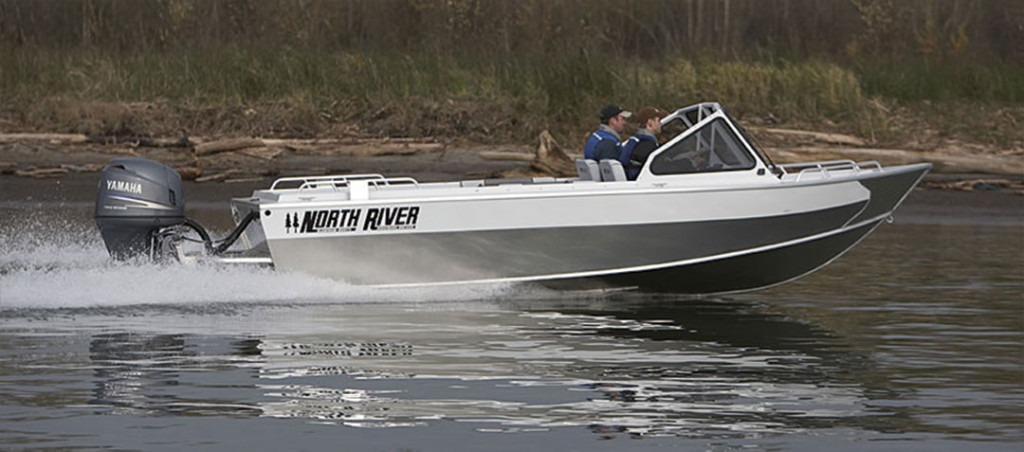

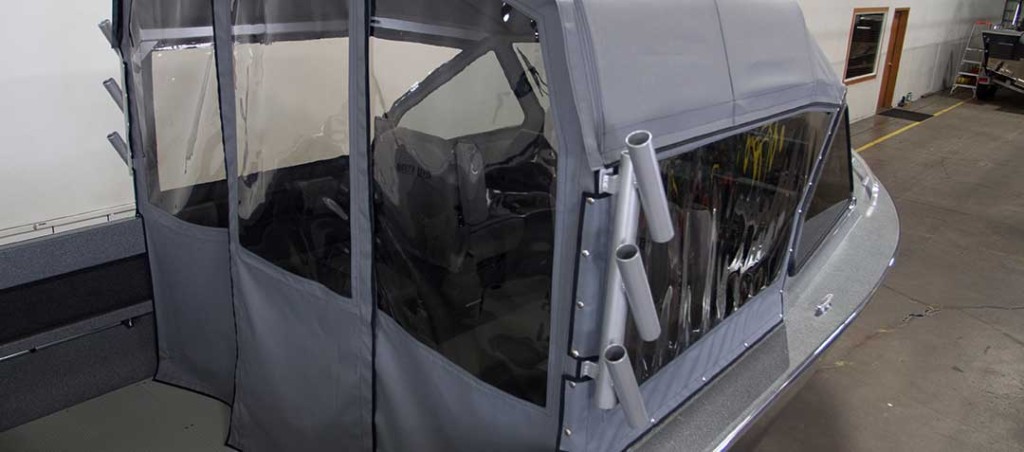

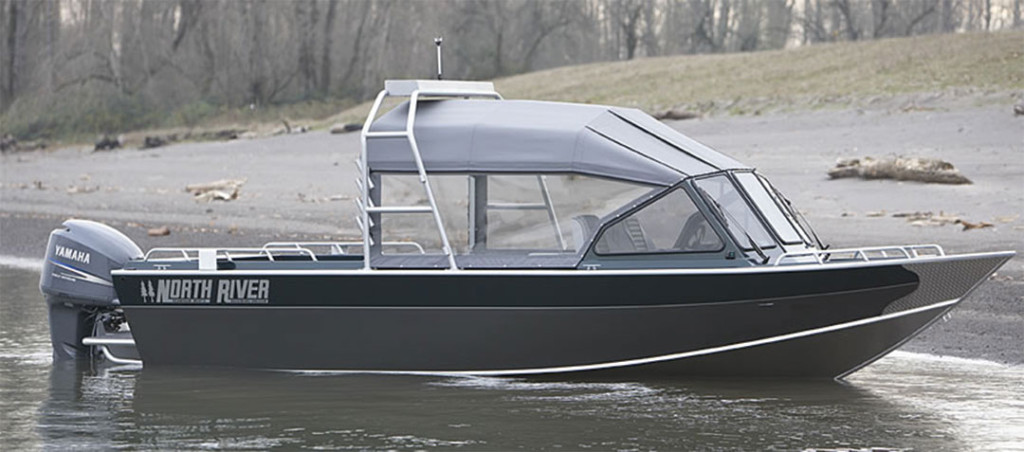

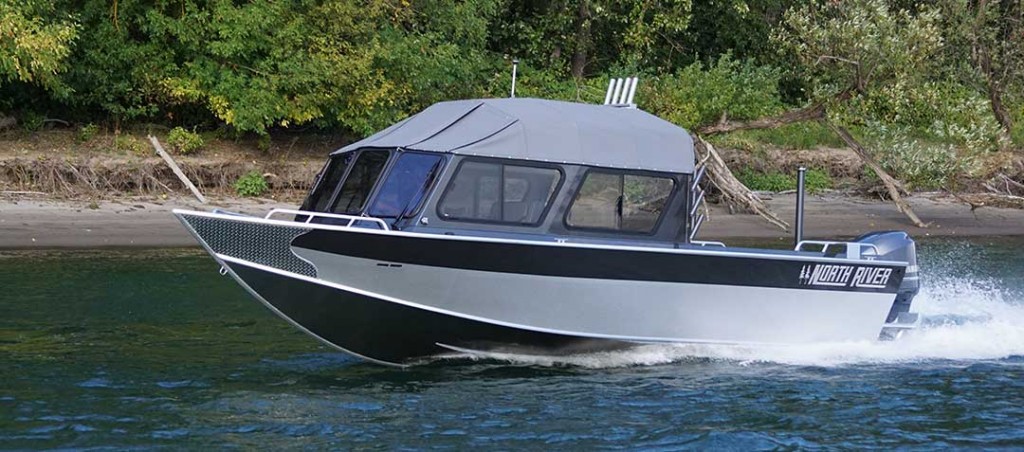

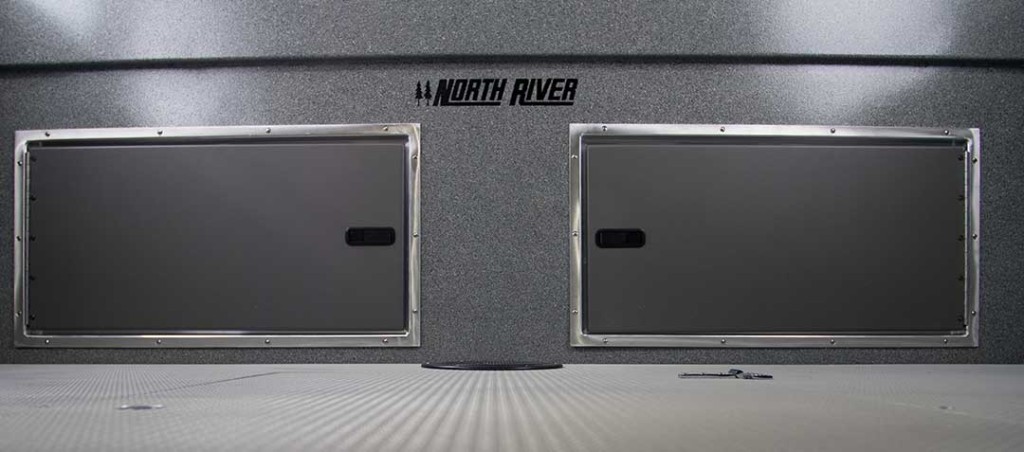

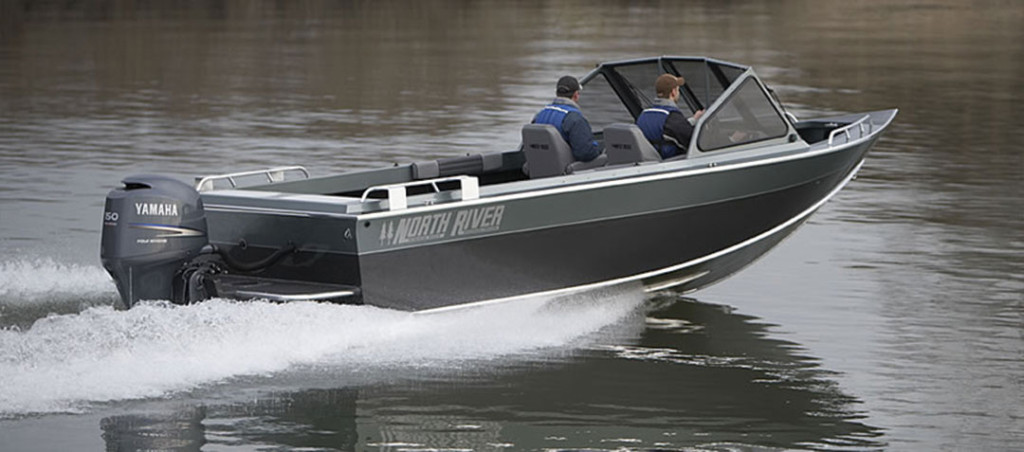

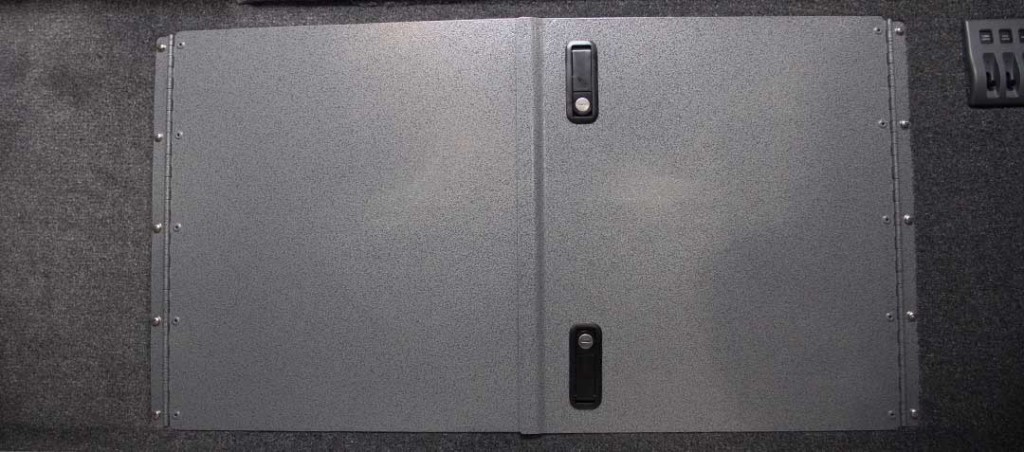

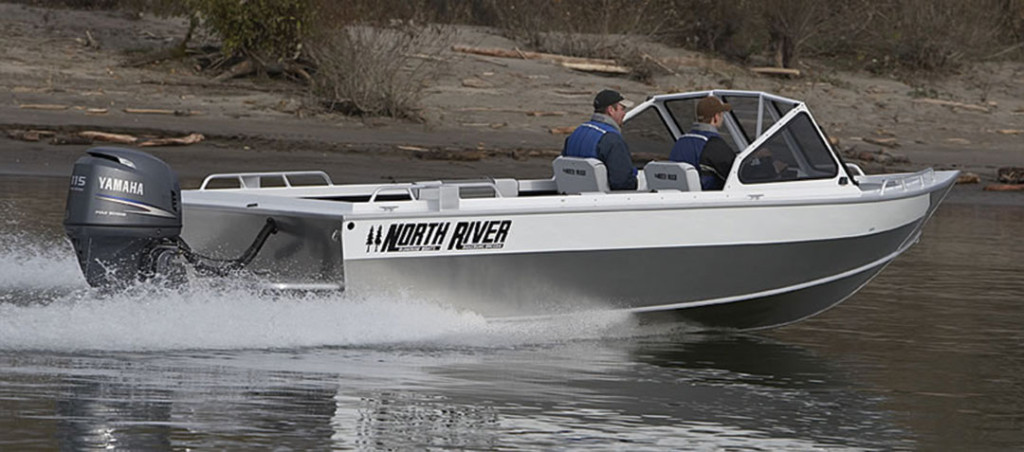

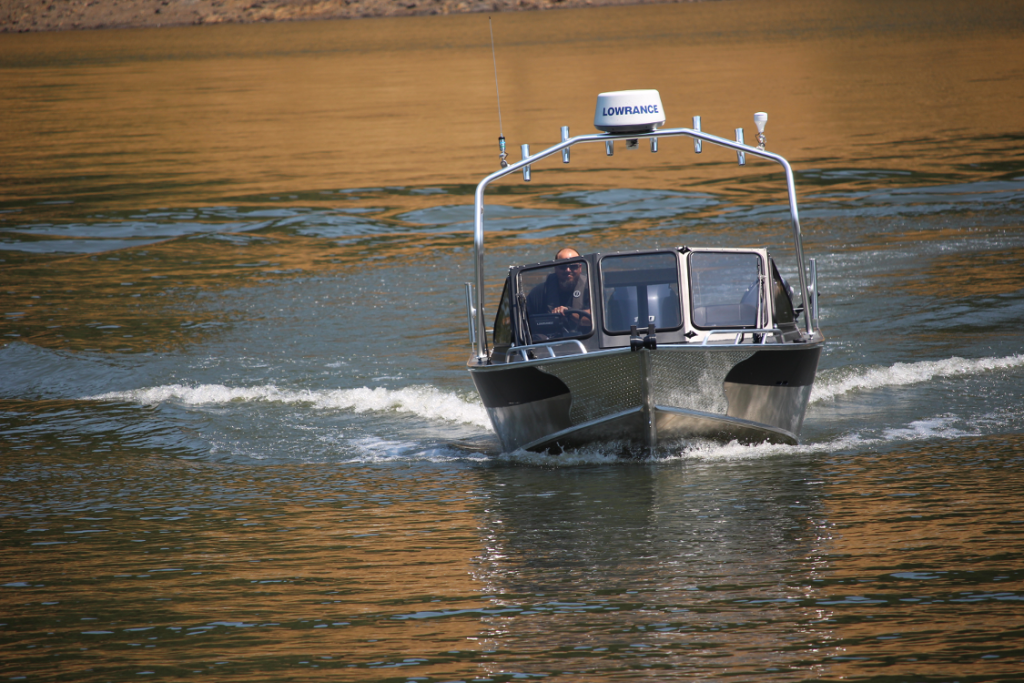

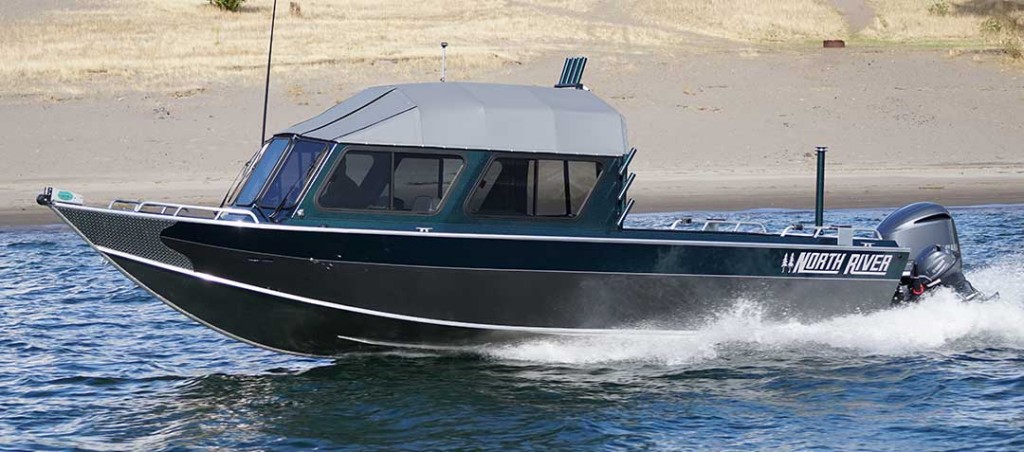

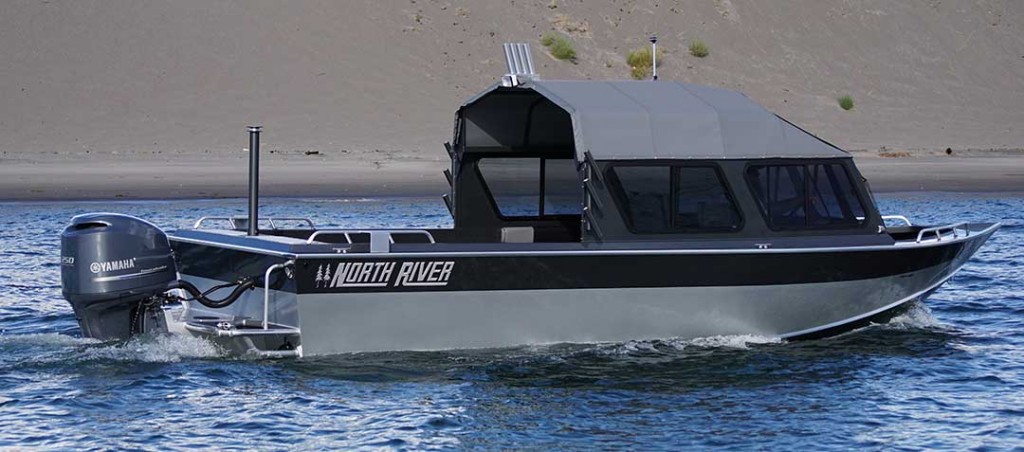

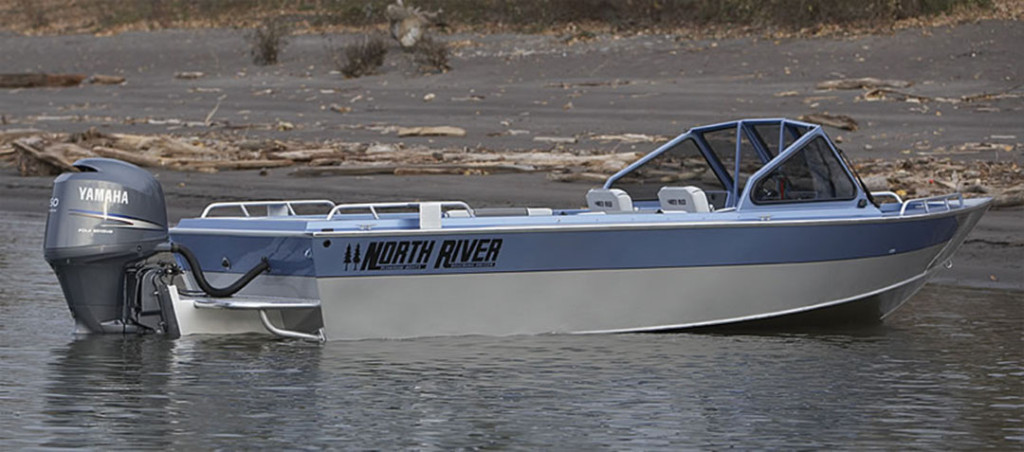

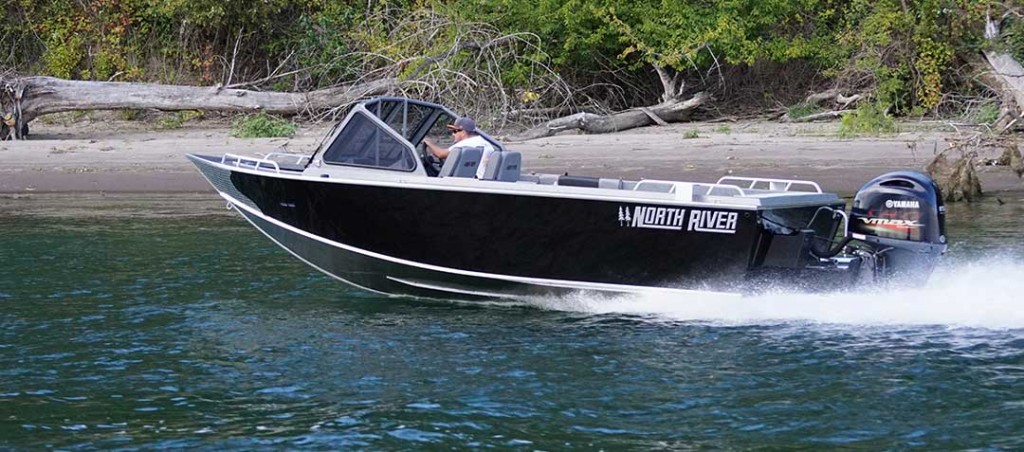

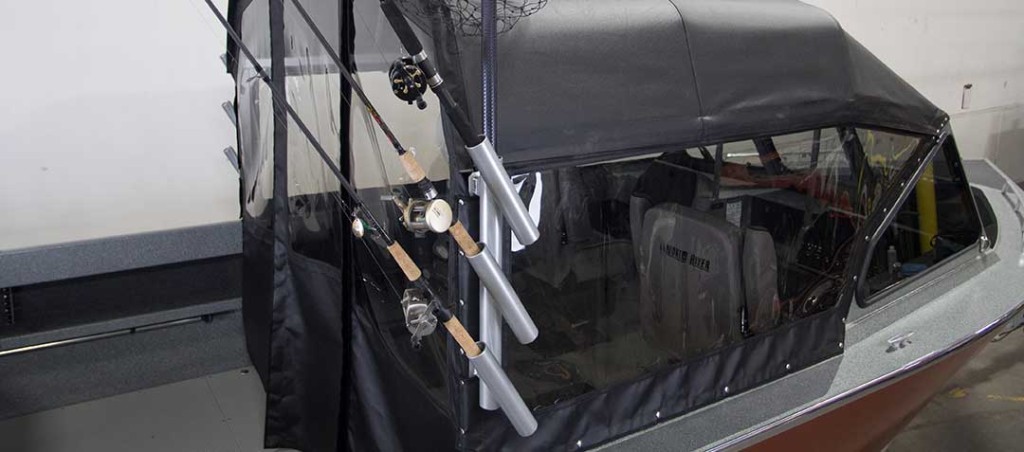

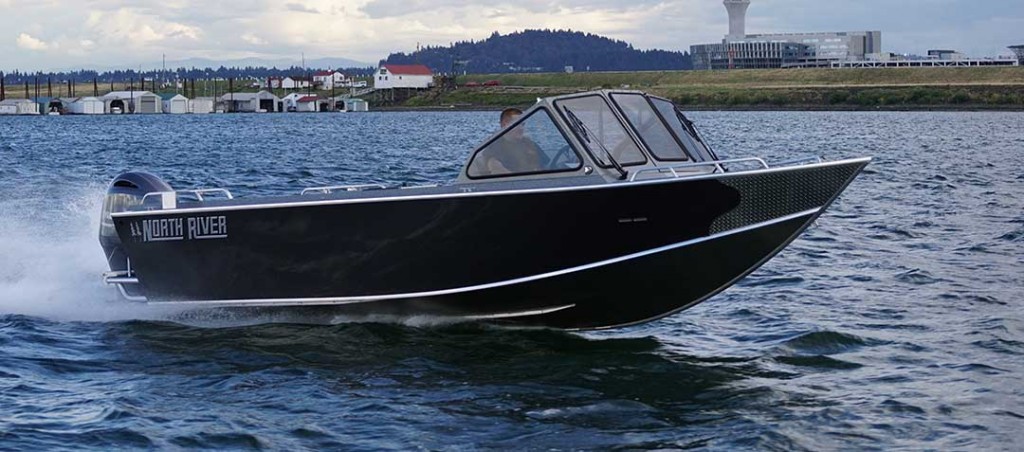

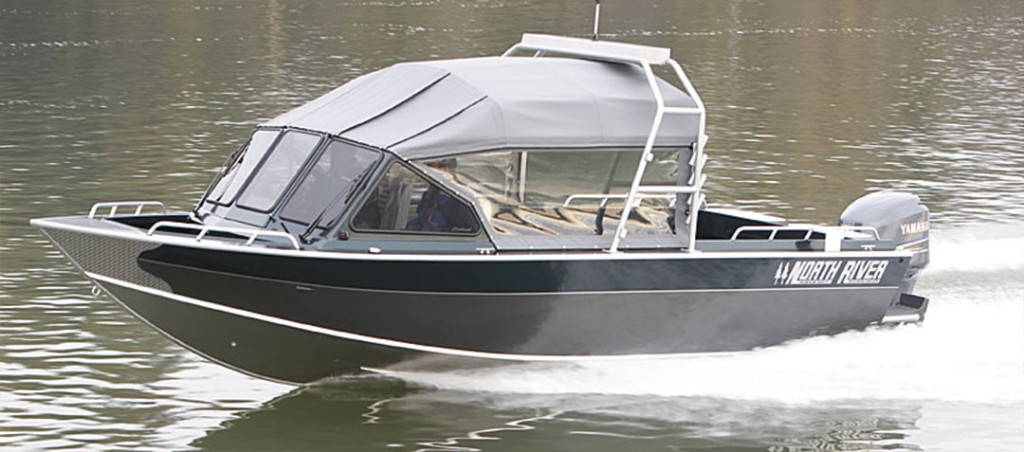

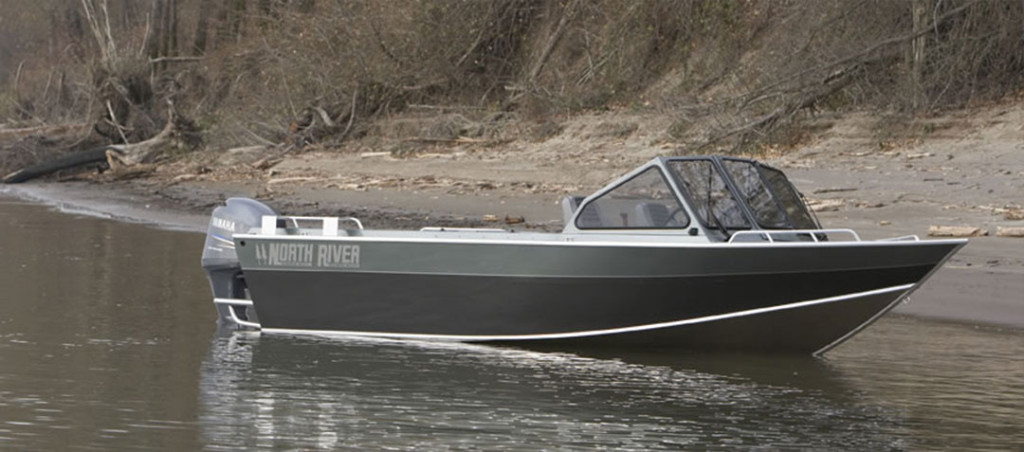

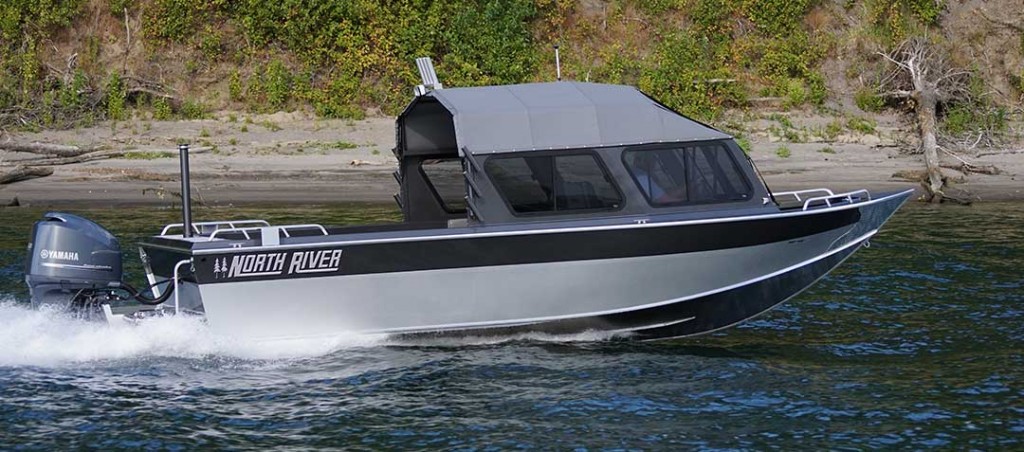

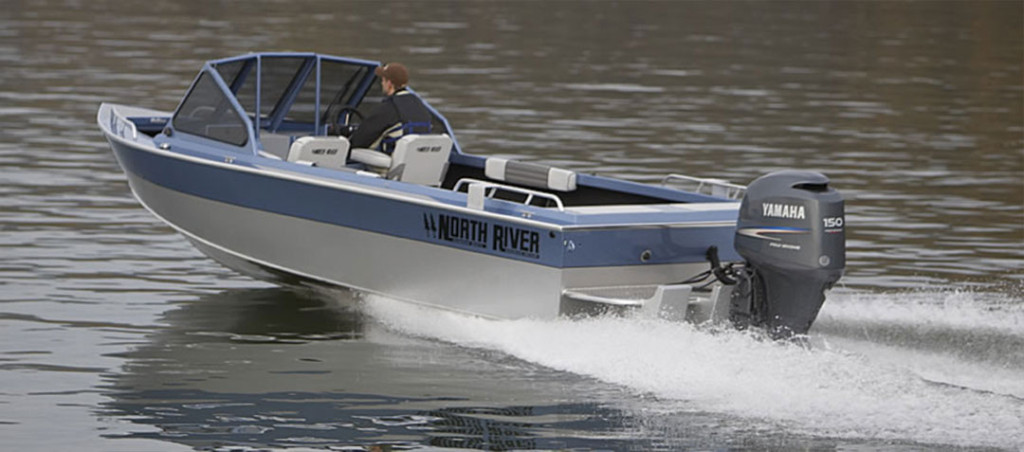

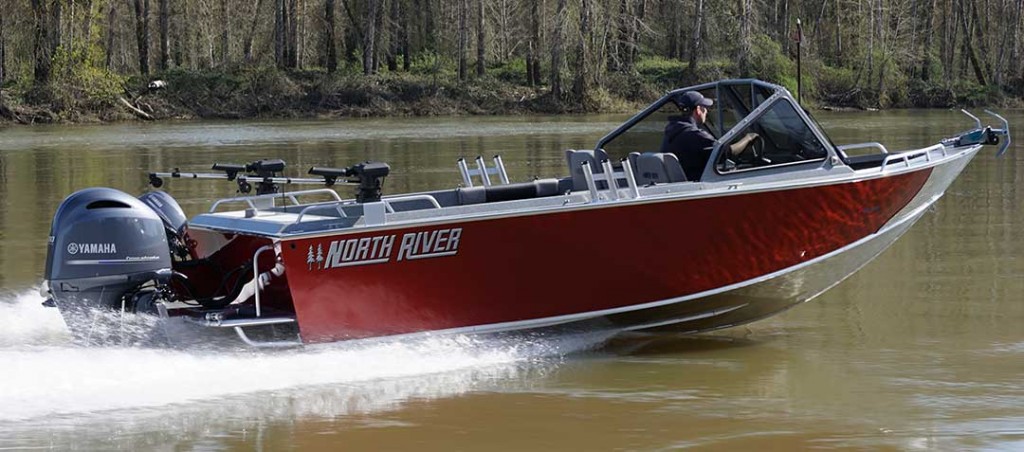

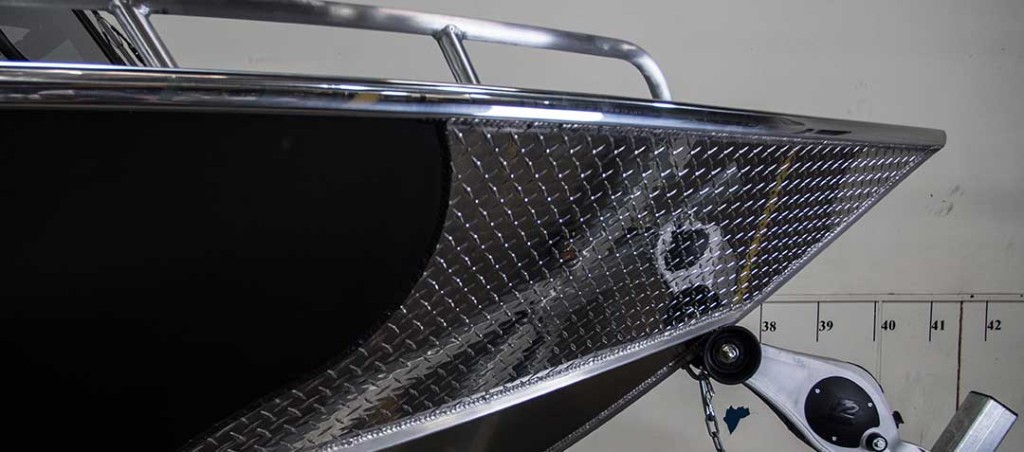

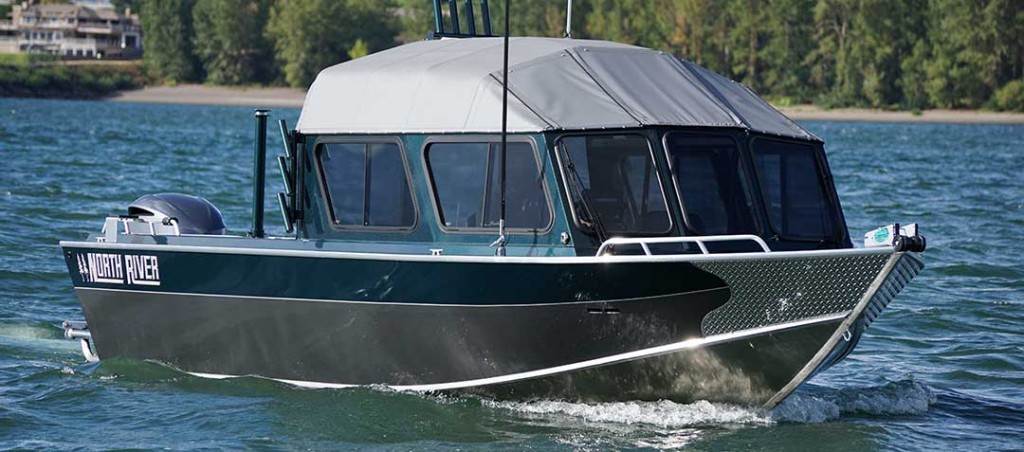

SEAHAWK OUTBOARD GALLERY
SEAHAWK OUTBOARD SPECIFICATIONS
SEAHAWK OUTBOARD 20′
See drawing below for reference
CENTERLINE LENGTH (B):
CABIN (LENGTH C / HEIGHT):
COCKPIT (LENGTH D / WIDTH):
HULL ENTRY:
DEADRISE:
BEAM:
BOTTOM:
TRANSOM:
SIDES:
INTERIOR SIDE HEIGHT:
FUEL CAPACITY:
ENGINE OUTBOARD:
DRY WEIGHT:
PERSON CAPACITY:
PERSON WT. CAPACITY:
MAX WT. CAPACITY:
MAX HORSEPOWER:
20′
75″ / 74″
57″ / 78″
29°
14°
96″
78″ x .190
.190
30″ x .125
27″
50 gallons
OUTBOARD – XL SHAFT
2,155 lbs.
5
925 lbs.
1666 lbs.
200 hp
![Seahawk Outboard DIMS Bolder Lines](https://www.northriverboats.com/wp-content/uploads/2016/01/Seahawk-Outboard-DIMS-Bolder-Lines-1.png)

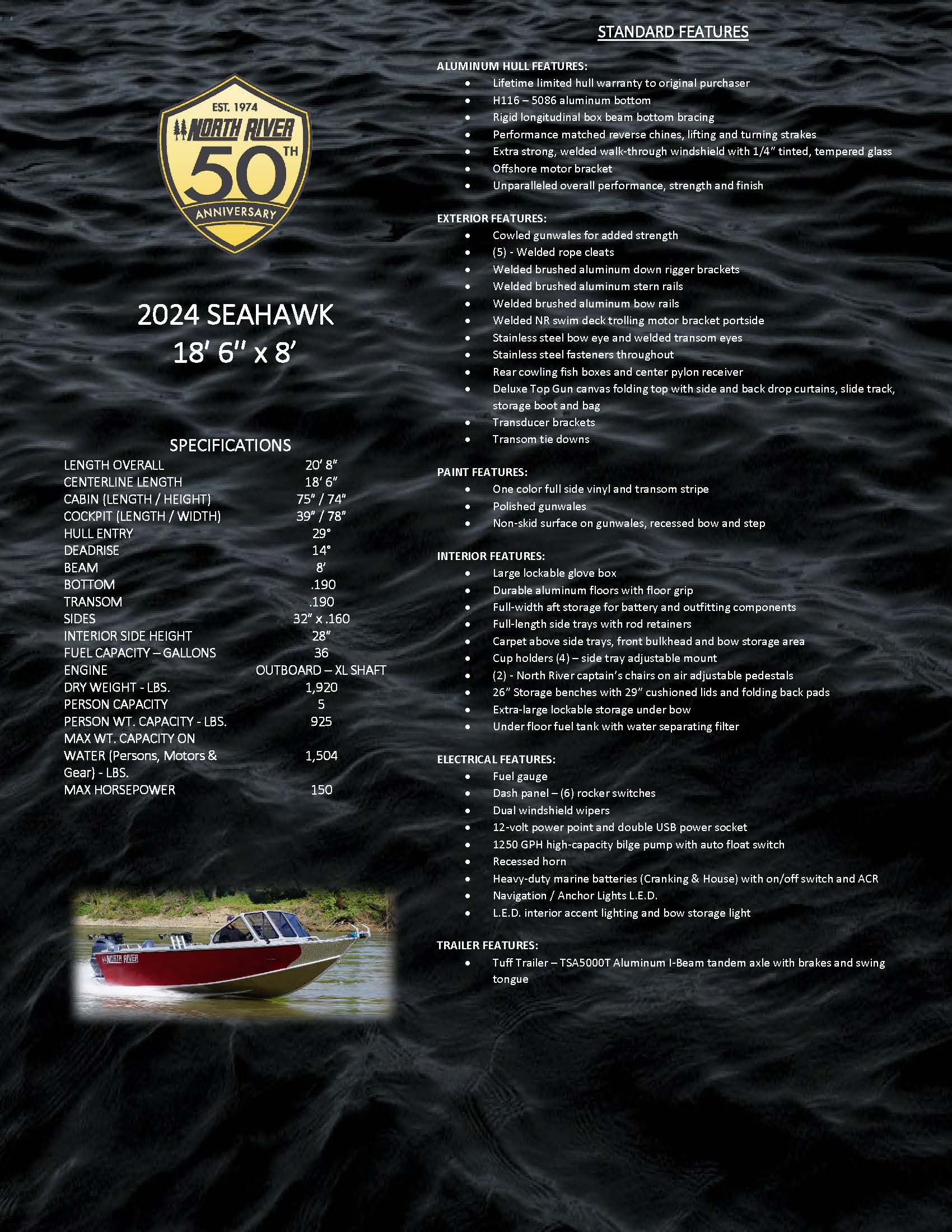

Download Spec Sheet
*All boats shown may include optional features not included in standard base pricing.

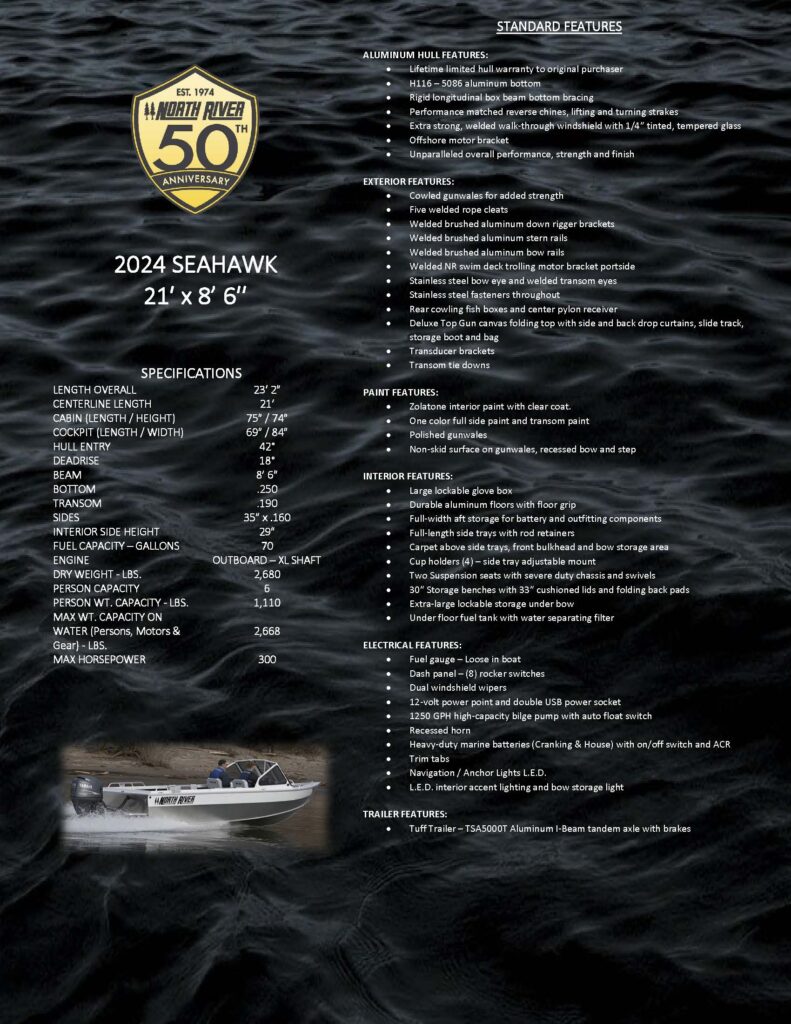

SEAHAWK OUTBOARD 21′
See drawing below for reference
CENTERLINE LENGTH (B):
CABIN (LENGTH C / HEIGHT):
COCKPIT (LENGTH D / WIDTH):
HULL ENTRY:
DEADRISE:
BEAM:
BOTTOM:
TRANSOM:
SIDES:
INTERIOR SIDE HEIGHT:
FUEL CAPACITY:
ENGINE OUTBOARD:
DRY WEIGHT:
PERSON CAPACITY:
PERSON WT. CAPACITY:
MAX WT. CAPACITY:
MAX HORSEPOWER:
21′
75″ / 74″
69″ / 84″
42°
18°
102″
84″ x .250
.190
35″ x .125
28″
70 gallons
OUTBOARD – XL SHAFT
2,680 lbs.
6
1,110 lbs.
2668 lbs.
300 hp
![Seahawk Outboard DIMS Bolder Lines](https://www.northriverboats.com/wp-content/uploads/2016/01/Seahawk-Outboard-DIMS-Bolder-Lines-1.png)
Download Spec Sheet
*All boats shown may include optional features not included in standard base pricing.

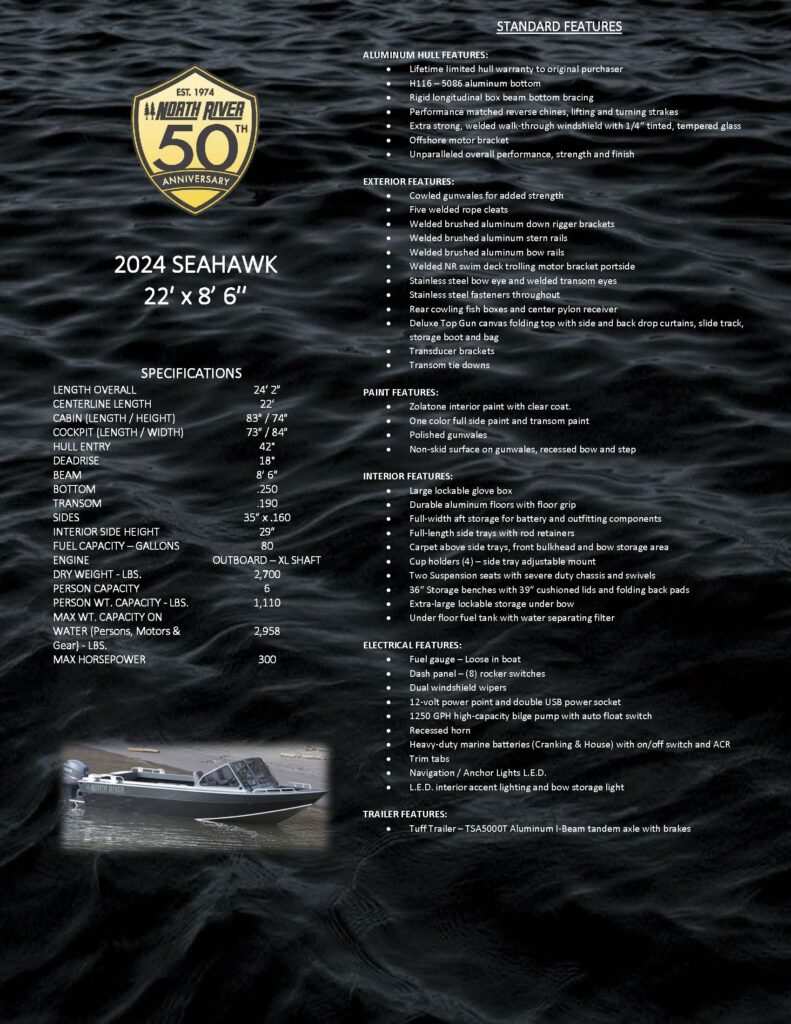

SEAHAWK OUTBOARD 22′
See drawing below for reference
CENTERLINE LENGTH (B):
CABIN (LENGTH C / HEIGHT):
COCKPIT (LENGTH D / WIDTH):
HULL ENTRY:
DEADRISE:
BEAM:
BOTTOM:
TRANSOM:
SIDES:
INTERIOR SIDE HEIGHT:
FUEL CAPACITY:
ENGINE OUTBOARD:
DRY WEIGHT:
PERSON CAPACITY:
PERSON WT. CAPACITY:
MAX WT. CAPACITY:
MAX HORSEPOWER:
22′
83″ / 74″
73″ / 84″
42°
18°
102″
84″ x .250
.190
35″ x .125
28″
80 gallons
OUTBOARD – XL SHAFT
2,700 lbs.
6
1110 lbs.
2958 lbs.
300 hp
![Seahawk Outboard DIMS Bolder Lines](https://www.northriverboats.com/wp-content/uploads/2016/01/Seahawk-Outboard-DIMS-Bolder-Lines-1.png)
Download Spec Sheet
*All boats shown may include optional features not included in standard base pricing.
SEAHAWK OUTBOARD 23′
See drawing below for reference
CENTERLINE LENGTH (B):
CABIN (LENGTH C / HEIGHT):
COCKPIT (LENGTH D / WIDTH):
HULL ENTRY:
DEADRISE:
BEAM:
BOTTOM:
TRANSOM:
SIDES:
INTERIOR SIDE HEIGHT:
FUEL CAPACITY:
ENGINE OUTBOARD:
DRY WEIGHT:
PERSON CAPACITY:
PERSON WT. CAPACITY:
MAX WT. CAPACITY:
MAX HORSEPOWER:
23′
83″ / 74″
85″ / 84″
42°
18°
102″
84″ x .250
.190
35″ x .125
28″
90 gallons
OUTBOARD – XL SHAFT
2,860 lbs.
7
1295 lbs.
3217 lbs.
300 hp
![Seahawk Outboard DIMS Bolder Lines](https://www.northriverboats.com/wp-content/uploads/2016/01/Seahawk-Outboard-DIMS-Bolder-Lines-1.png)
Download Spec Sheet
*All boats shown may include optional features not included in standard base pricing.

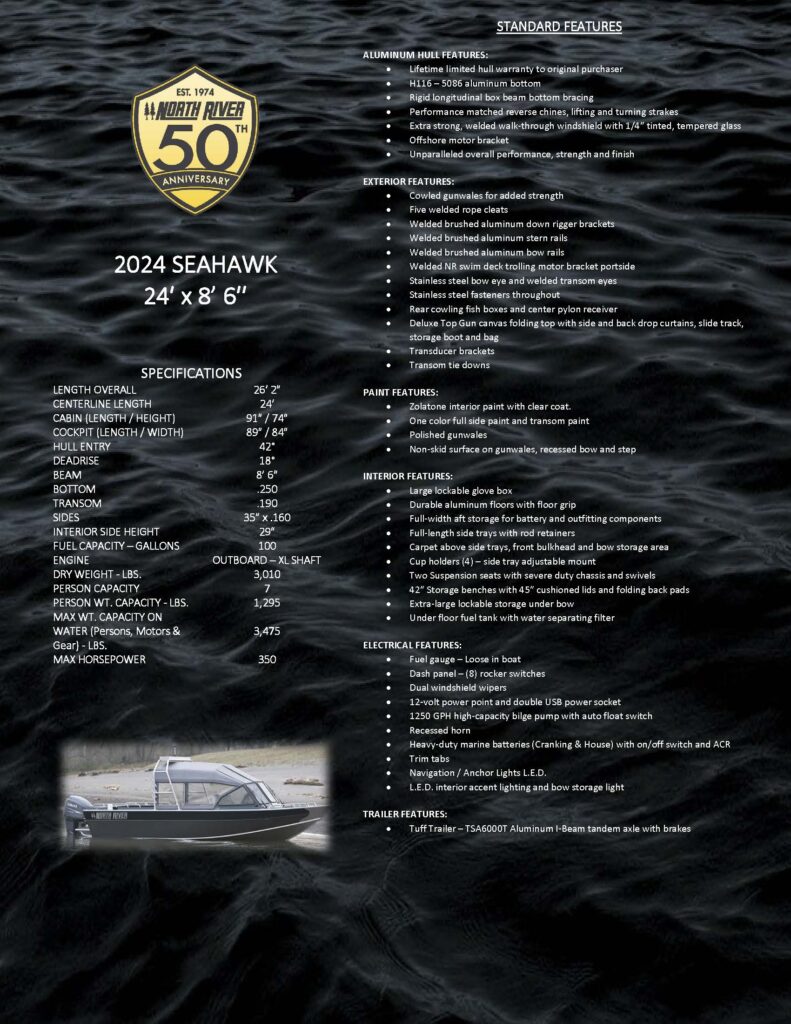

SEAHAWK OUTBOARD 24′
See drawing below for reference
CENTERLINE LENGTH (B):
CABIN (LENGTH C / HEIGHT):
COCKPIT (LENGTH D / WIDTH):
HULL ENTRY:
DEADRISE:
BEAM:
BOTTOM:
TRANSOM:
SIDES:
INTERIOR SIDE HEIGHT:
FUEL CAPACITY:
ENGINE OUTBOARD:
DRY WEIGHT:
PERSON CAPACITY:
PERSON WT. CAPACITY:
MAX WT. CAPACITY:
MAX HORSEPOWER:
24′
91″ / 74″
89″ / 84″
42°
18°
102″
84″ x .250
.190
35″ x .160
28″
100 gallons
OUTBOARD – XL SHAFT
3,010 lbs.
7
1295 lbs.
3475 lbs.
350 hp
![Seahawk Outboard DIMS Bolder Lines](https://www.northriverboats.com/wp-content/uploads/2016/01/Seahawk-Outboard-DIMS-Bolder-Lines-1.png)
Download Spec Sheet
*All boats shown may include optional features not included in standard base pricing.
SEAHAWK OUTBOARD 25′
See drawing below for reference
CENTERLINE LENGTH (B):
CABIN (LENGTH C / HEIGHT):
COCKPIT (LENGTH D / WIDTH):
HULL ENTRY:
DEADRISE:
BEAM:
BOTTOM:
TRANSOM:
SIDES:
INTERIOR SIDE HEIGHT:
FUEL CAPACITY:
ENGINE OUTBOARD:
DRY WEIGHT:
PERSON CAPACITY:
PERSON WT. CAPACITY:
MAX WT. CAPACITY:
MAX HORSEPOWER:
25′
91″ / 74″
101″ / 84″
42°
18°
102″
84″ x .250
.190
35″ x .160
28″
110 gallons
OUTBOARD – XL SHAFT
3,150 lbs.
7
1295 lbs.
3739 lbs.
350 hp
![Seahawk Outboard DIMS Bolder Lines](https://www.northriverboats.com/wp-content/uploads/2016/01/Seahawk-Outboard-DIMS-Bolder-Lines-1.png)
Download Spec Sheet
*All boats shown may include optional features not included in standard base pricing.
SEAHAWK OUTBOARD SPECIFICATIONS
SEAHAWK OUTBOARD 18′ 6″
See drawing below for reference
CENTERLINE LENGTH (B):
CABIN (LENGTH C / HEIGHT):
COCKPIT (LENGTH D / WIDTH):
HULL ENTRY:
DEADRISE:
BEAM:
BOTTOM:
TRANSOM:
SIDES:
INTERIOR SIDE HEIGHT:
FUEL CAPACITY:
ENGINE OUTBOARD:
DRY WEIGHT:
PERSON CAPACITY:
PERSON WT. CAPACITY:
MAX WT. CAPACITY:
MAX HORSEPOWER:
18′ 6″
75″ / 74″
39″ / 78″
29°
14°
96″
78″ x .190
.190
30″ x .125
27″
36 gallons
OUTBOARD – XL SHAFT
1,920 lbs.
5
925 lbs.
1504 lbs.
135 hp
![Seahawk Outboard DIMS Bolder Lines](https://www.northriverboats.com/wp-content/uploads/2016/01/Seahawk-Outboard-DIMS-Bolder-Lines-1.png)
SEAHAWK OUTBOARD 20′
See drawing below for reference
CENTERLINE LENGTH (B):
CABIN (LENGTH C / HEIGHT):
COCKPIT (LENGTH D / WIDTH):
HULL ENTRY:
DEADRISE:
BEAM:
BOTTOM:
TRANSOM:
SIDES:
INTERIOR SIDE HEIGHT:
FUEL CAPACITY:
ENGINE OUTBOARD:
DRY WEIGHT:
PERSON CAPACITY:
PERSON WT. CAPACITY:
MAX WT. CAPACITY:
MAX HORSEPOWER:
20′
75″ / 74″
57″ / 78″
29°
14°
96″
78″ x .190
.190
30″ x .125
27″
50 gallons
OUTBOARD – XL SHAFT
2,155 lbs.
5
925 lbs.
1666 lbs.
200 hp
![Seahawk Outboard DIMS Bolder Lines](https://www.northriverboats.com/wp-content/uploads/2016/01/Seahawk-Outboard-DIMS-Bolder-Lines-1.png)
Download Spec Sheet
*All boats shown may include optional features not included in standard base pricing.
SEAHAWK OUTBOARD 21′
See drawing below for reference
CENTERLINE LENGTH (B):
CABIN (LENGTH C / HEIGHT):
COCKPIT (LENGTH D / WIDTH):
HULL ENTRY:
DEADRISE:
BEAM:
BOTTOM:
TRANSOM:
SIDES:
INTERIOR SIDE HEIGHT:
FUEL CAPACITY:
ENGINE OUTBOARD:
DRY WEIGHT:
PERSON CAPACITY:
PERSON WT. CAPACITY:
MAX WT. CAPACITY:
MAX HORSEPOWER:
21′
75″ / 74″
69″ / 84″
42°
18°
102″
84″ x .250
.190
35″ x .125
28″
70 gallons
OUTBOARD – XL SHAFT
2,680 lbs.
6
1,110 lbs.
2668 lbs.
300 hp
![Seahawk Outboard DIMS Bolder Lines](https://www.northriverboats.com/wp-content/uploads/2016/01/Seahawk-Outboard-DIMS-Bolder-Lines-1.png)
Download Spec Sheet
*All boats shown may include optional features not included in standard base pricing.
SEAHAWK OUTBOARD 22′
See drawing below for reference
CENTERLINE LENGTH (B):
CABIN (LENGTH C / HEIGHT):
COCKPIT (LENGTH D / WIDTH):
HULL ENTRY:
DEADRISE:
BEAM:
BOTTOM:
TRANSOM:
SIDES:
INTERIOR SIDE HEIGHT:
FUEL CAPACITY:
ENGINE OUTBOARD:
DRY WEIGHT:
PERSON CAPACITY:
PERSON WT. CAPACITY:
MAX WT. CAPACITY:
MAX HORSEPOWER:
22′
83″ / 74″
73″ / 84″
42°
18°
102″
84″ x .250
.190
35″ x .125
28″
80 gallons
OUTBOARD – XL SHAFT
2,700 lbs.
6
1110 lbs.
2958 lbs.
300 hp
![Seahawk Outboard DIMS Bolder Lines](https://www.northriverboats.com/wp-content/uploads/2016/01/Seahawk-Outboard-DIMS-Bolder-Lines-1.png)
Download Spec Sheet
*All boats shown may include optional features not included in standard base pricing.
SEAHAWK OUTBOARD 23′
See drawing below for reference
CENTERLINE LENGTH (B):
CABIN (LENGTH C / HEIGHT):
COCKPIT (LENGTH D / WIDTH):
HULL ENTRY:
DEADRISE:
BEAM:
BOTTOM:
TRANSOM:
SIDES:
INTERIOR SIDE HEIGHT:
FUEL CAPACITY:
ENGINE OUTBOARD:
DRY WEIGHT:
PERSON CAPACITY:
PERSON WT. CAPACITY:
MAX WT. CAPACITY:
MAX HORSEPOWER:
23′
83″ / 74″
85″ / 84″
42°
18°
102″
84″ x .250
.190
35″ x .125
28″
90 gallons
OUTBOARD – XL SHAFT
2,860 lbs.
7
1295 lbs.
3217 lbs.
300 hp
![Seahawk Outboard DIMS Bolder Lines](https://www.northriverboats.com/wp-content/uploads/2016/01/Seahawk-Outboard-DIMS-Bolder-Lines-1.png)
Download Spec Sheet
*All boats shown may include optional features not included in standard base pricing.
SEAHAWK OUTBOARD 24′
See drawing below for reference
CENTERLINE LENGTH (B):
CABIN (LENGTH C / HEIGHT):
COCKPIT (LENGTH D / WIDTH):
HULL ENTRY:
DEADRISE:
BEAM:
BOTTOM:
TRANSOM:
SIDES:
INTERIOR SIDE HEIGHT:
FUEL CAPACITY:
ENGINE OUTBOARD:
DRY WEIGHT:
PERSON CAPACITY:
PERSON WT. CAPACITY:
MAX WT. CAPACITY:
MAX HORSEPOWER:
24′
91″ / 74″
89″ / 84″
42°
18°
102″
84″ x .250
.190
35″ x .160
28″
100 gallons
OUTBOARD – XL SHAFT
3,010 lbs.
7
1295 lbs.
3475 lbs.
350 hp
![Seahawk Outboard DIMS Bolder Lines](https://www.northriverboats.com/wp-content/uploads/2016/01/Seahawk-Outboard-DIMS-Bolder-Lines-1.png)
Download Spec Sheet
*All boats shown may include optional features not included in standard base pricing.
SEAHAWK OUTBOARD 25′
See drawing below for reference
CENTERLINE LENGTH (B):
CABIN (LENGTH C / HEIGHT):
COCKPIT (LENGTH D / WIDTH):
HULL ENTRY:
DEADRISE:
BEAM:
BOTTOM:
TRANSOM:
SIDES:
INTERIOR SIDE HEIGHT:
FUEL CAPACITY:
ENGINE OUTBOARD:
DRY WEIGHT:
PERSON CAPACITY:
PERSON WT. CAPACITY:
MAX WT. CAPACITY:
MAX HORSEPOWER:
25′
91″ / 74″
101″ / 84″
42°
18°
102″
84″ x .250
.190
35″ x .160
28″
110 gallons
OUTBOARD – XL SHAFT
3,150 lbs.
7
1295 lbs.
3739 lbs.
350 hp
![Seahawk Outboard DIMS Bolder Lines](https://www.northriverboats.com/wp-content/uploads/2016/01/Seahawk-Outboard-DIMS-Bolder-Lines-1.png)
Download Spec Sheet
*All boats shown may include optional features not included in standard base pricing.
