HOOKED UP FEATURES

ALUMINUM HULL FEATURES:

• Lifetime limited hull warranty to original purchaser
• 5086 – H116 aluminum bottom and sides
• Scantlings ABS High Speed Craft – transverse frames, longitudinals, keel and stem bar
• Forward leaning three-piece windshield
• 13′ Pilothouse with Alaskan bulkhead, offset isle way, DSG black series sliding door and cabin windows
• Self-bailing welded aluminum rear deck
• Rub Rails – Upper & Lower, Port & Starboard
• Twin 30″ outboard offshore bracket with Freeman access hatch
• Boarding door – Starboard side
• Unparalleled overall performance, strength and finish

EXTERIOR FEATURES:

• Dodger, cabin Port and Starboard roof line and windshield visor
• Cabin aft overhang – Extended.  36″ Center length
• Welded roof mast- hinged
• Welded roof mounted rod rocket launchers (QTY 12)
• Welded net holder – Starboard cabin side aft (QTY 1)
• Rod Holder – Flush mount welded in gunwale top Port & Starboard – 3 per side
• Burnewiin rod holders
• Windline ladder (removable with storage mounts) – Port roof top access & Starboard swim deck boarding (QTY 2)
• Welded painted aluminum extended length full wrap bow rails with pulpit hoop
• Welded anchor pulpit with standing platform and bow anchor locker
• Welded painted aluminum stern, roof and aft cabin rails
• Welded painted aluminum down rigger brackets (QTY 4)
• Welded swim deck – Starboard ONLY
• Transom trolling engine bracket with outboard hydraulic motor lift – Port
• Welded 10″ rope cleats
• GatorStep floor overlay – Gunwale walking surfaces (around bow to fore of stern rails) & Cuddy trunk
• Transom rear cowling bait / fish – storage boxes (QTY 2)
• Anchor with rope and chain (~300′ total rode)
• Cuddy trunk escape hatch – 19” x 19” (QTY 2)
• Roof top vent hatch – 9.5” x 9.5” (QTY 2)
• Solar fan- head compartment
• Propane tank storage on Starboard swim deck (Fiberglass 17 lb. tank)
• Viking life raft
• McMurdo EPIRB
• Highfield CL290 Tender with Yamaha 6HP portable engine
• Atkins & Hoyle 3000R Deck Mount Crane w/12v Winch – PORT
• Side Power bow thruster

COCKPIT FEATURES:

• Under floor 400 gallon fuel tank with Racor fuel / water separating filters
• Westerbeke 7.5Kw MCGA low-CO Gas Generator
• Fire Boy fire suppression system for generator cabinet
• Ice Maker – Eskimo Ice EI540D Fishbox freshwater Ice System
• Bait tank with pump and drain system
• Fish box in-floor, center aft deck with evacuation pump
• Fish boxes, side mounted floor (pair) with macerator pumps
• Aft rigging compartments
• Tackle tray compartment – Port
• Welded tie down cleats in floor (QTY 4)
• Aluminum deck plates (QTY 3)
• GatorStep floor overlay
• Aft steering station with return lip surround – Starboard (Twin main engine aft station control).  Includes:
  • Yamaha Helm Master – XTO Second Station Helm Kit w/ CL7 Display & Install
  • Tray storage
• Aft steering station with return lip surround – Port (Trolling engine station control).  Includes:
  • Hydraulic steering system
  • Yamaha 704 Pre-Rig & Kicker Install (F40LA)
  • Plano tackle tray storage (3700 trays not included)
• Cup holders (QTY 4)

CABIN INTERIOR FEATURES:

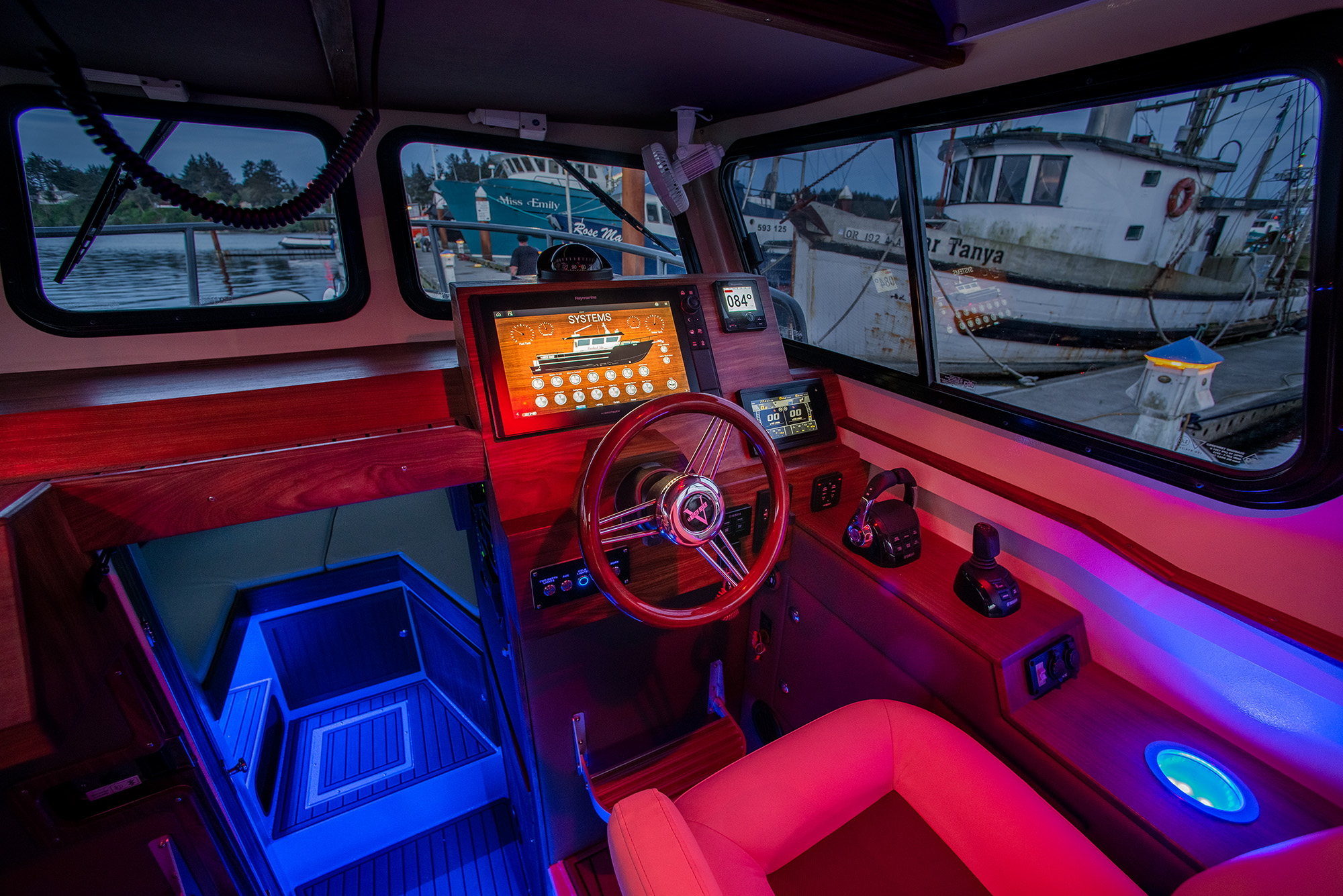

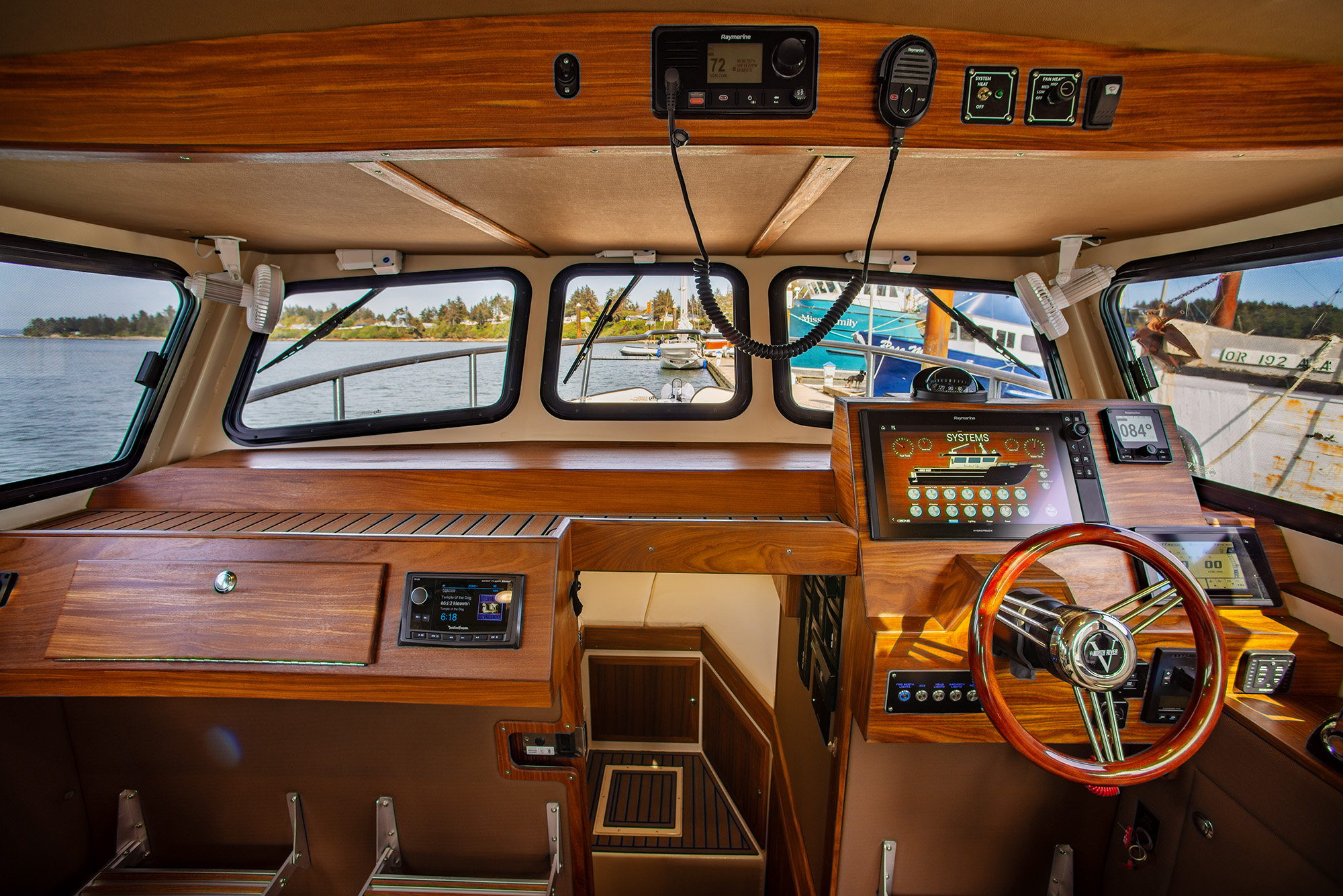

• Helm station – Starboard (Twin main engine main station control).  Includes:
  • Yamaha Helm Master – XTO Main Station Helm Kit w/ CL7 Display & Install
• Enclosed V-berth (pocket door) with step down entrance
• Main cabin upholstered headliner and cladding with teak trim
• Teak covered full width dash with Port glove box and storage tray
• Teak covered overhead electronics box – full width
• GatorStep floor overlay
• Cup holders
• Sliding side windows with screens
• Storage compartments throughout cabin
• Interior thermal/acoustic insulation package
• Webasto diesel water heater & forced air defroster/heater system with zone control
• Dometic Air Condition system
• Seaward F700 marine electric 120v water heater
• Holding tanks with sending unit (52 Gallon fresh water and 28 Gallon black water)
• Diesel tank (10 Gallon) with deck fill and sending unit
• Reverse Osmosis Filtration System – Galley sink

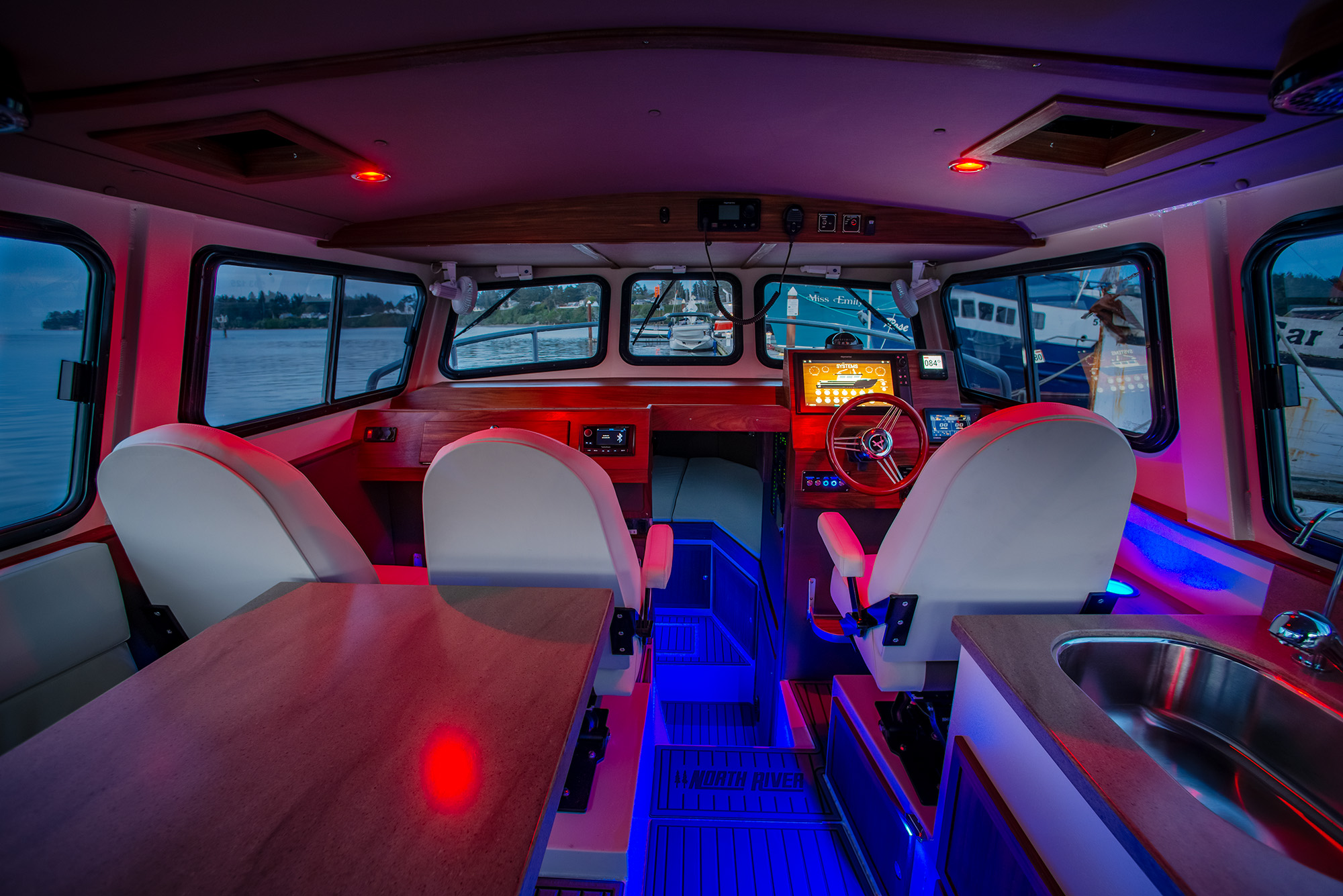

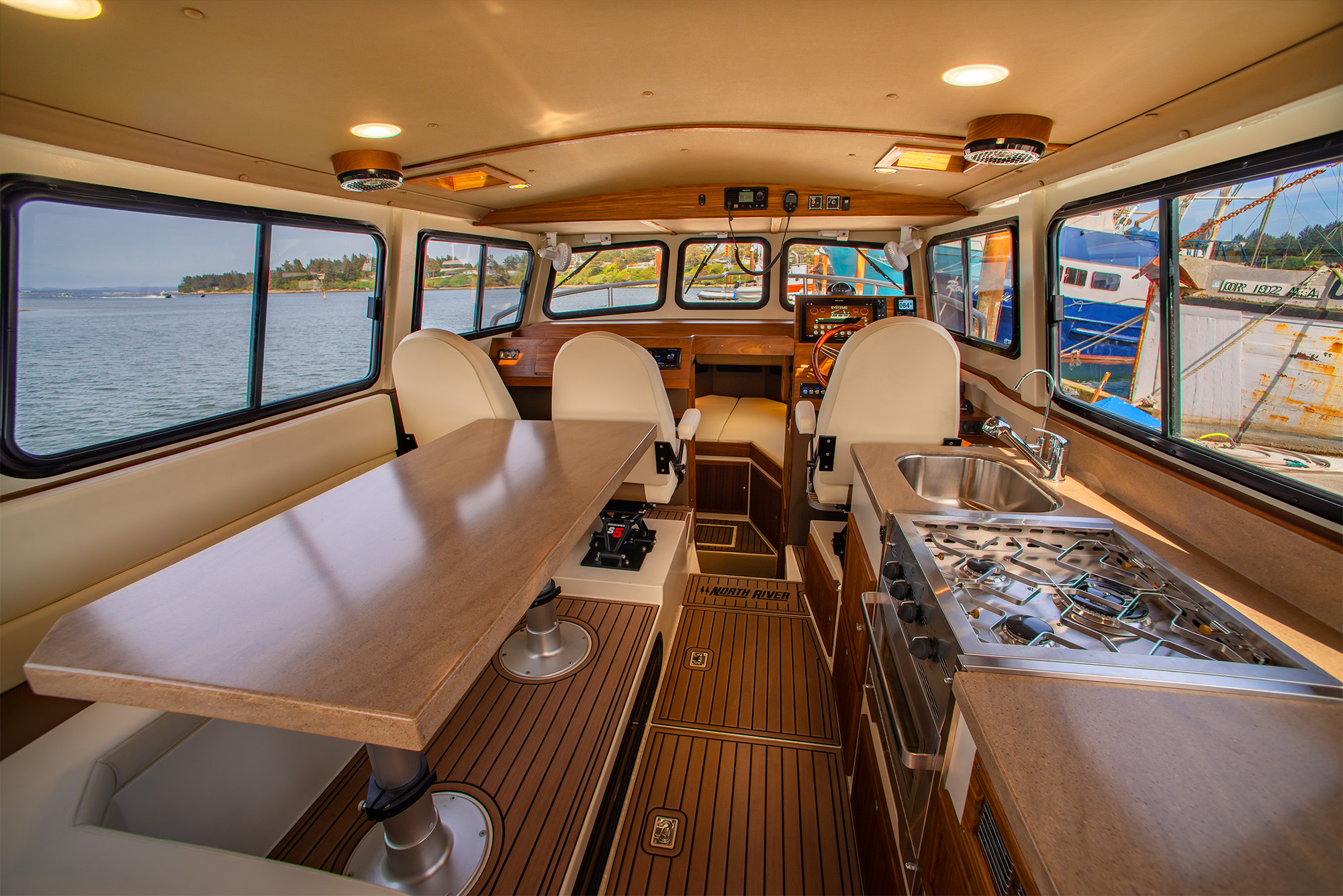

CABIN LAYOUT FEATURES:

13′ Cabin length

Starboard:

• NRB Ocean Master helm chair with Shockwave S5 suspension base and swivel slide on storage box
• Galley cabinet with full height counter top.  Includes:
  • Solid surface counter
  • Teak door and drawer faces
  • Refrigerator – Freezer, Isotherm Cruise 200
  • Dickinson Mediterranean three burner propane stove / oven combo with cutting board cover
  •  Galley sink (undermount) & faucet with solid surface cover
  • Fresh and hot water system

Port:

• NRB Ocean Master helm chair with Shockwave S5 suspension base (QTY 2 – side by side)
• Shockwave swivel slide (Inboard chair only)
• “L” Shaped Dinette with solid surface table (matching all counter tops)
• Entrance to mid berth
• Mid berth under dinette floor.  Includes:
  • Memory foam mattress with covered upholstery
  • Outboard side cubby storage and interior hanging bar
  •  Upholstered headliner and cladding with teak trim
  • Interior cuddy window at aisle way
• State Room – Forward Berth:
  • Memory foam mattress with covered upholstery
  • Built-in storage (under mattress), cubby side storage and hanging closet (Starboard)
  • Upholstered headliner and cladding with teak trim
• Stand up head.  Includes:
  • Electric toilet & covered toilet paper dispenser
  • Sink, faucet /shower combo
  • Solid surface counter
  • Teak medicine cabinet with double doors and mirrors
  •  Teak head door
  • Teak floor mat
  • GatorStep floor overlay

ELECTRICAL FEATURES:

• Digital switching system – CZone digital control and monitoring network.  Includes:
  • Mastervolt Mass Combi 12/3000-160 (120V) Inverter / Charger
  • Mastervolt MVG 12/120 Gel Battery (QTY 4)
• 50A Shore power system (AC Panel, 5 outlets, cord set, and galvanic isolator)
• Triple windshield wipers with washer tank system
• 12-volt power point and double USB power socket – (QTY 4 each)
• Dual 2000 GPH high-capacity bilge pump with auto float switches
• High water bilge alarms through CZone network
• Toilet and shower system with sump pump
• Dual trumpet horn
• High pressure wash down pump (QTY 2) – Raw & fresh water
• Windlass / Anchor Winch with dual controls – Lofrans Lion 1000
• Trim tabs – Lectrotab
• Navigation / Anchor Lights L.E.D.
• L.E.D. Dome lights L.E.D. (QTY 10)
• L.E.D. Courtesy lights and accent strip lights
• L.E.D. Deck lights (QTY 3 – On roof top pads, 2 aft deck / 1 forward facing)
• L.E.D. Underwater lights at stern (QTY 2)
• Ceiling fans (QTY 3)
• Golden Rod dehumidifier / heater (QTY 2 – 1 cabin sole / 1 transom)
• Raymarine radar, navigation and entertainment electronics
• Rockford Fosgate sound system
• Ritchie Navigator compass

PAINT FEATURES:

• One color full side paint to chine with clear coat
• Aft deck and Cuddy trunk – Soft white over Zolatone with clear coat
• Cabin exterior and interior – Soft white over Zolatone with clear coat
• Cabin dodger and roof top – Soft white over Zolatone with clear coat
• Matson non-skid surfaces on roof top
• Exterior railing painted Lilith Charcoal
• Antifoul bottom paint

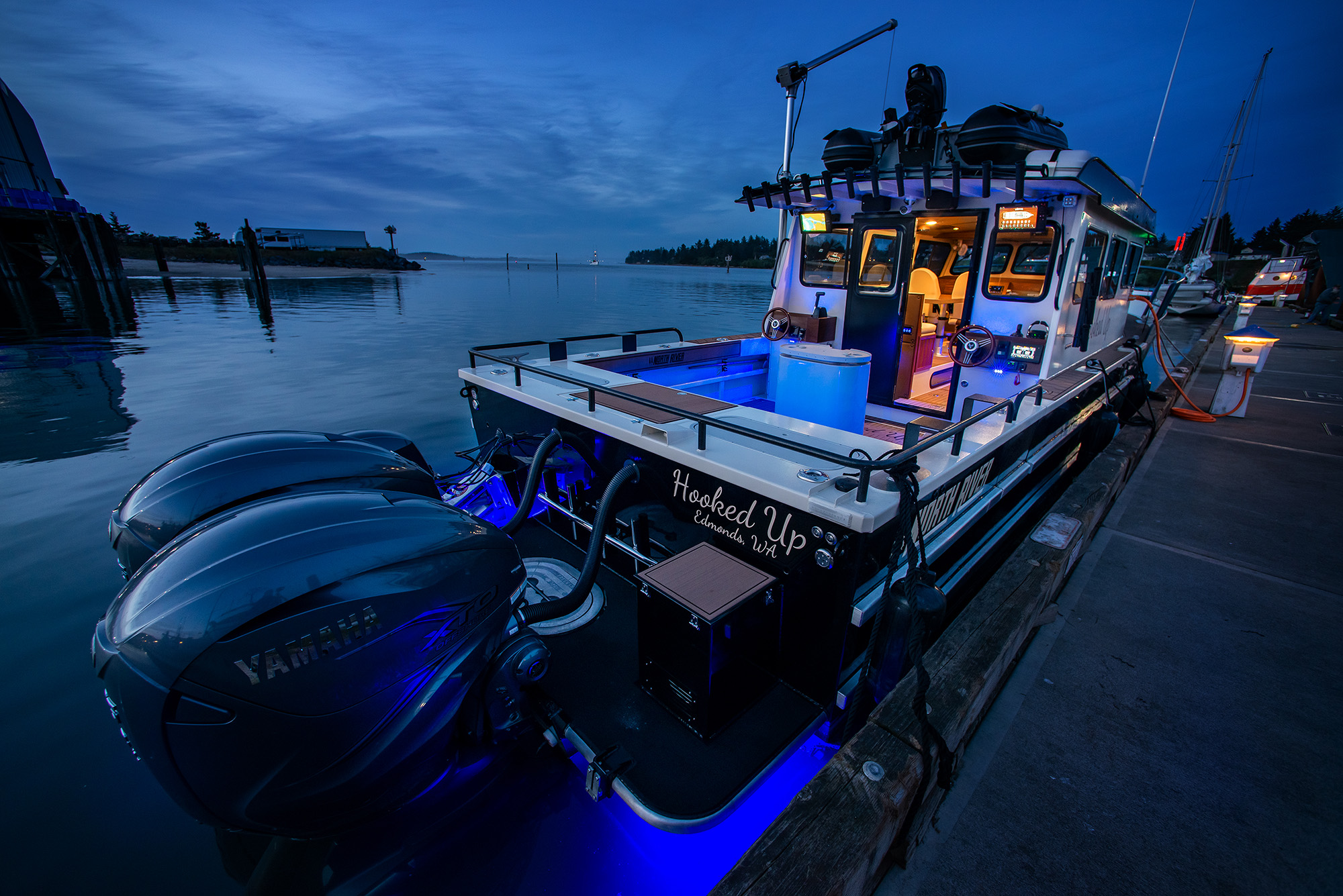

PROPULSION FEATURES:

• Yamaha XF425 XTO Engine – Twins
• Yamaha T50LB
