DOC’S BABY FEATURES

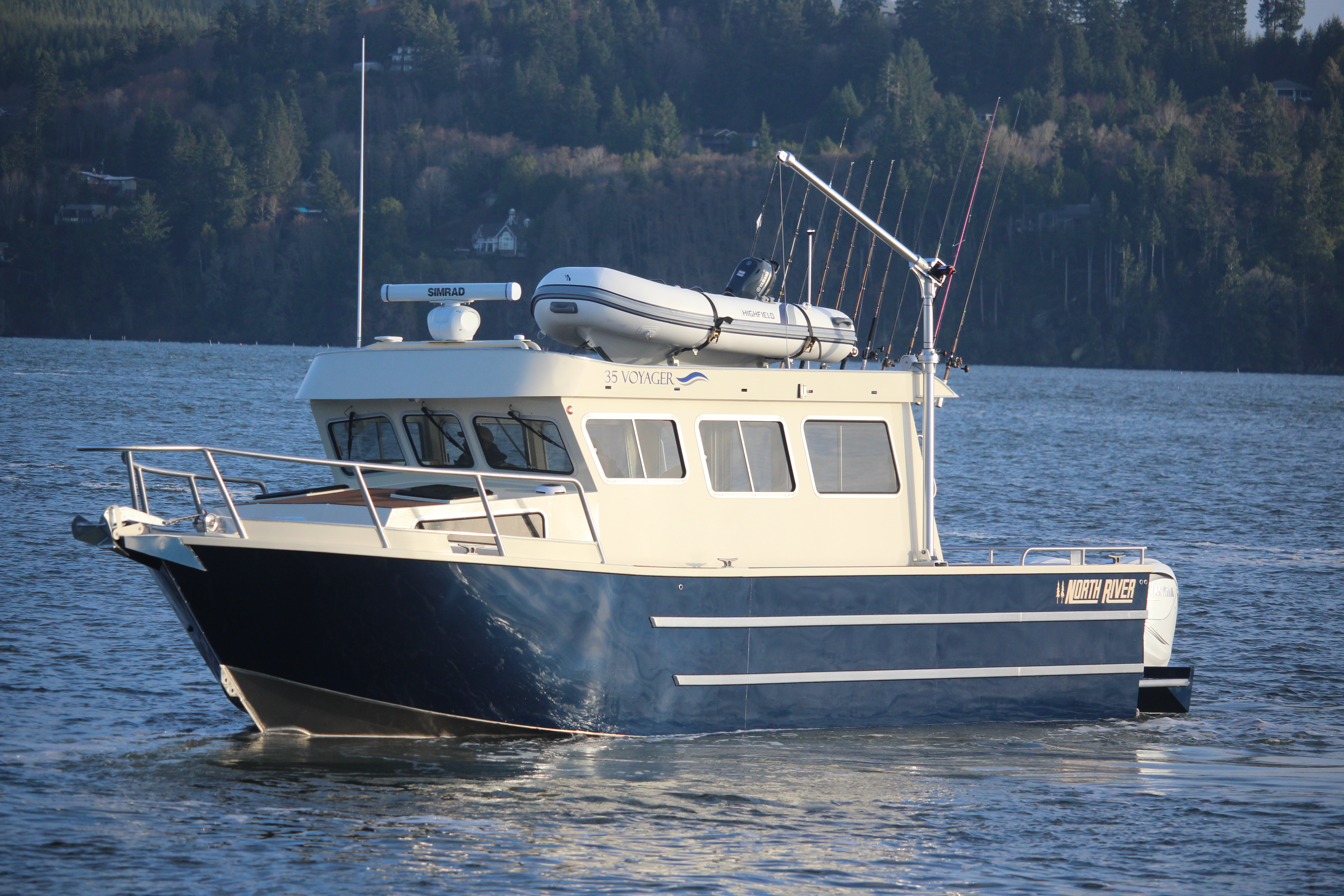

ALUMINUM HULL FEATURES:

• Lifetime limited hull warranty to original purchaser
• 5086 – H116 aluminum bottom and sides
• Scantlings ABS High Speed Craft – transverse frames, longitudinals, keel and stem bar
• Forward leaning three-piece windshield
• 13′ Pilothouse with Alaskan bulkhead, offset isle way, DSG series sliding door and cabin windows
• Self-bailing welded aluminum rear deck
• Rub Rails – Upper & Lower, Port & Starboard

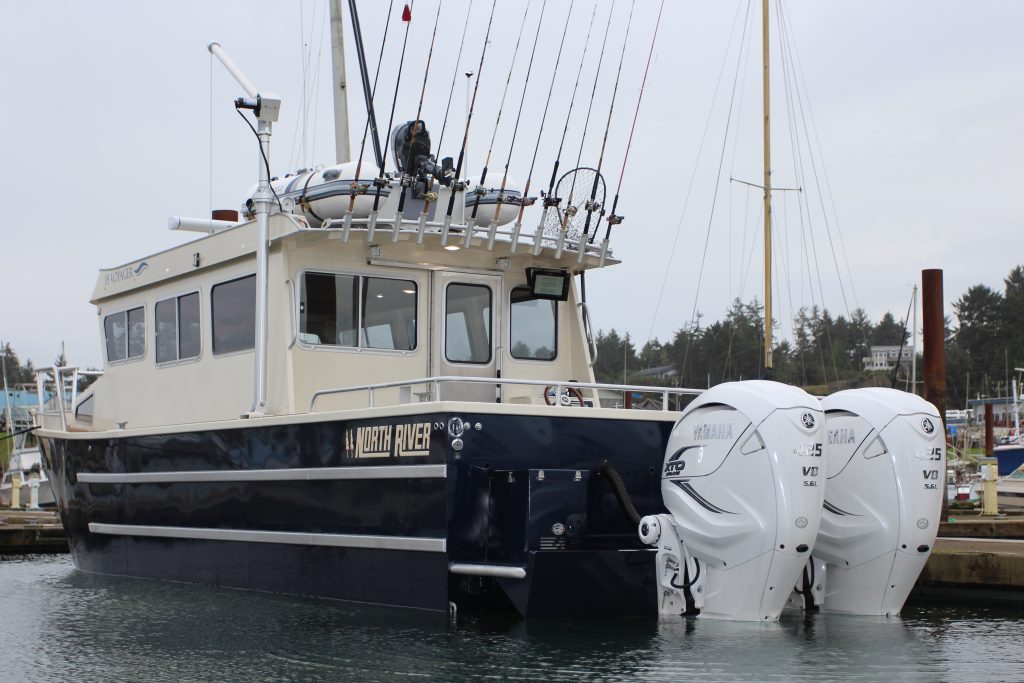

• Twin 30″ outboard offshore bracket with Freeman access hatch
• Boarding door – Starboard side
• Unparalleled overall performance, strength and finish

EXTERIOR FEATURES:

• Dodger, cabin Port and Starboard roof line and windshield visor
• Cabin aft overhang – Extended.  24″ Center length
• Welded radar arch
• Welded roof mounted rod rocket launchers (QTY 12)
• Welded net holder – Starboard cabin side aft (QTY 1)
• Windline ladder (removable with storage mounts) – Port roof top access & Starboard swim deck boarding (QTY 2)
• Welded aluminum extended length full wrap bow rails with pulpit hoop
• Welded anchor pulpit and bow anchor locker
• Welded aluminum stern, roof and aft cabin rails
• Welded aluminum down rigger brackets (QTY 4)
• Welded swim deck – Starboard ONLY
• Transom trolling engine bracket – Port
• Welded 10″ rope cleats
• GatorStep floor overlay – Gunwale walking surfaces (around bow to fore of stern rails) & Cuddy trunk
• Transom rear cowling bait / fish – storage boxes (QTY 2)
• Anchor with rope and chain (~300′ total rode)
• Cuddy trunk escape hatch – 19” x 19” (QTY 2)
• Roof top vent hatch – 9.5” x 9.5” (QTY 2)
• Solar fan- head compartment
• Propane tank storage on Starboard swim deck (Fiberglass 17 lb. tank)
• Highfield CL290 Tender with Yamaha 6HP portable engine
• Atkins & Hoyle 3000R Deck Mount Crane w/12v Winch – PORT

COCKPIT FEATURES:

• Under floor 330 gallon fuel tank with Racor fuel / water separating filters
• Fish box in-floor, center aft deck with evacuation pump
• Fish boxes, side mounted floor (pair) with macerator pumps
• Aft rigging compartments
• Tackle tray compartment – Port
• Welded step Port and Starboard (QTY 2)
• Welded tie down cleats in floor (QTY 4)
• Welded deck plates (QTY 4)
• GatorStep floor overlay

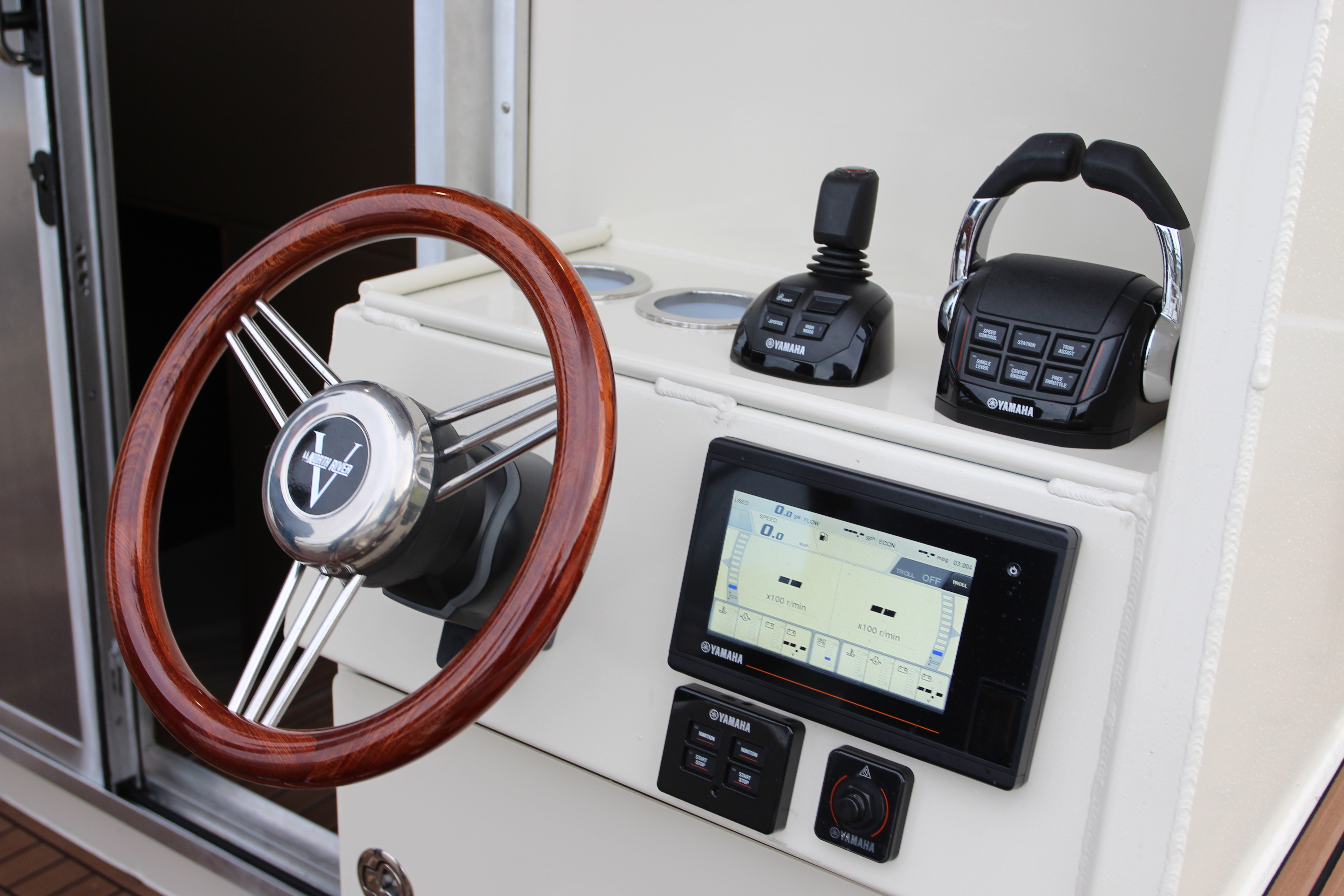

• Aft steering station with return lip surround – Starboard (Twin main engine aft station control).  Includes:
• Yamaha Helm Master – XTO Second Station Helm Kit w/ CL7 Display & Install
• Tray storage
• Cup holders (QTY 4)

CABIN INTERIOR FEATURES:

• Helm station – Starboard (Twin main engine main station control).  Includes:
• Yamaha Helm Master – XTO Main Station Helm Kit w/ CL7 Display & Install

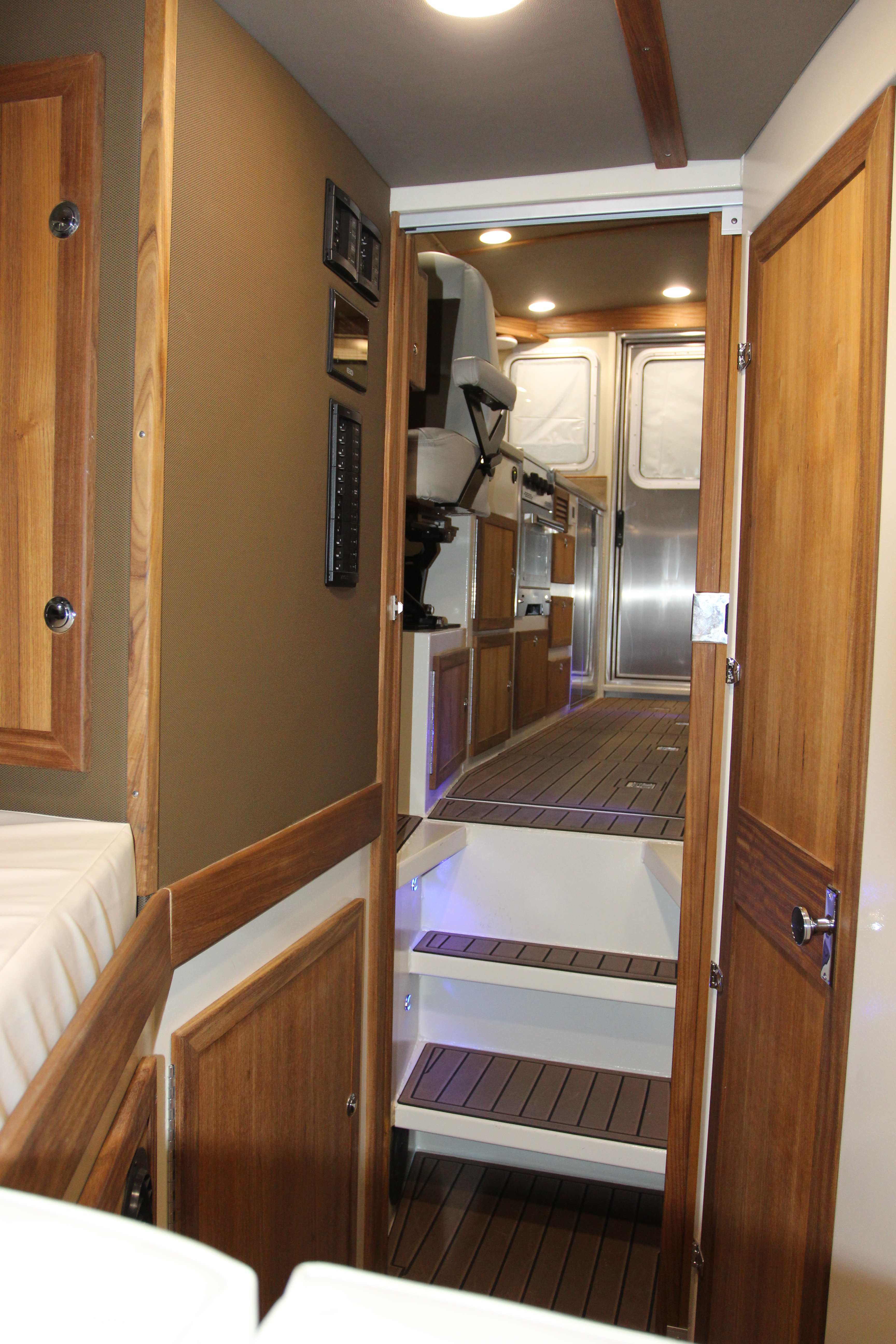

• Enclosed V-berth (pocket door) with step down entrance
• Main cabin upholstered headliner and cladding with teak trim
• Teak covered full width dash with Port glove box and storage tray
• Teak covered overhead electronics box – full width
• GatorStep floor overlay
• Cup holders
• Sliding side windows with screens
• Storage compartments throughout cabin
• Interior thermal/acoustic insulation package
• Webasto diesel water heater & forced air defroster/heater system with zone control
• CNC Air Condition system
• Seaward F700 marine electric 120v water heater
• Holding tanks with sending unit (fresh and black water)
• Diesel tank with deck fill and sending unit

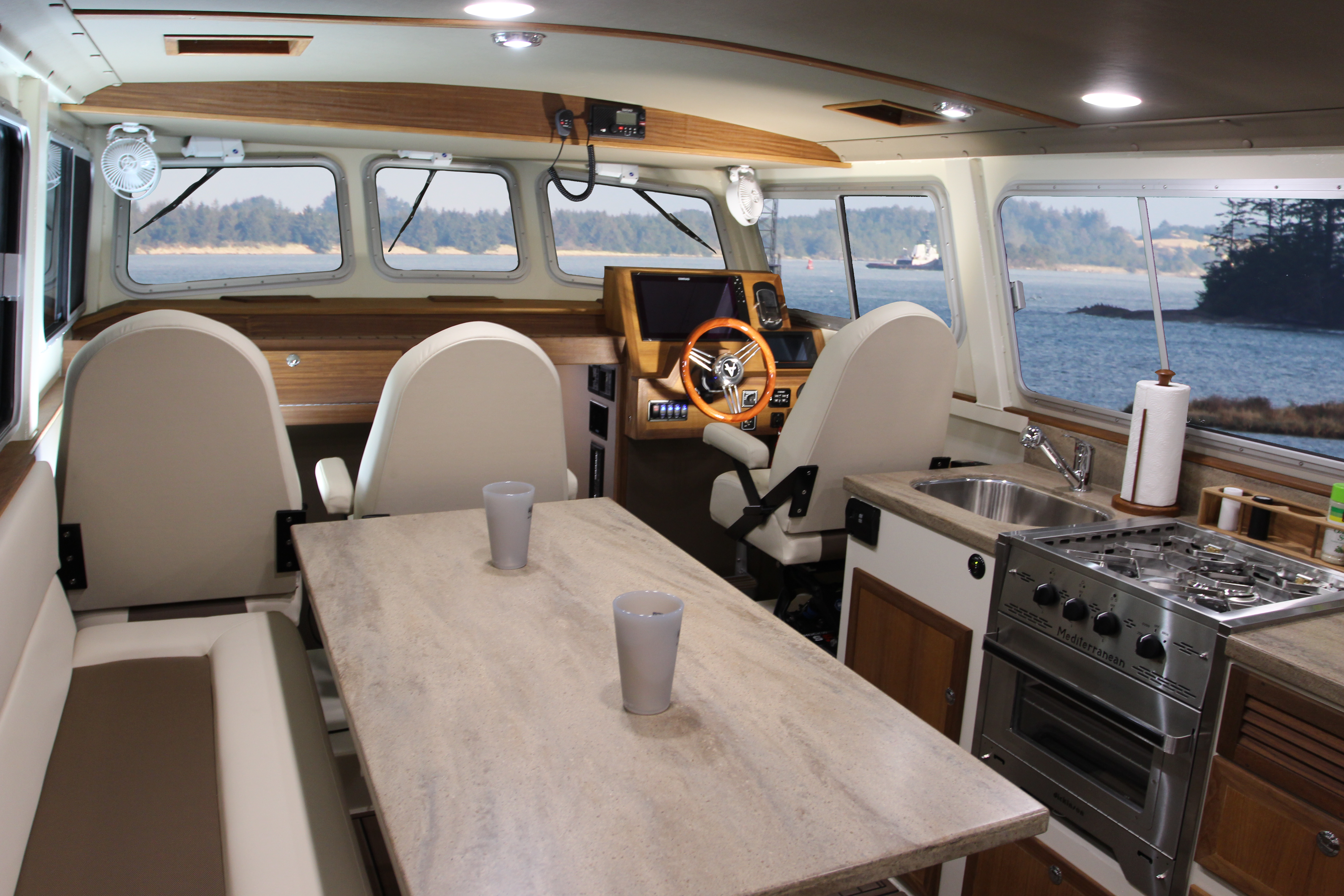

CABIN LAYOUT FEATURES:

• 13′ Cabin length
• Starboard:
  • NRB Ocean Master helm chair with Shockwave S5 suspension base and swivel slide on storage box

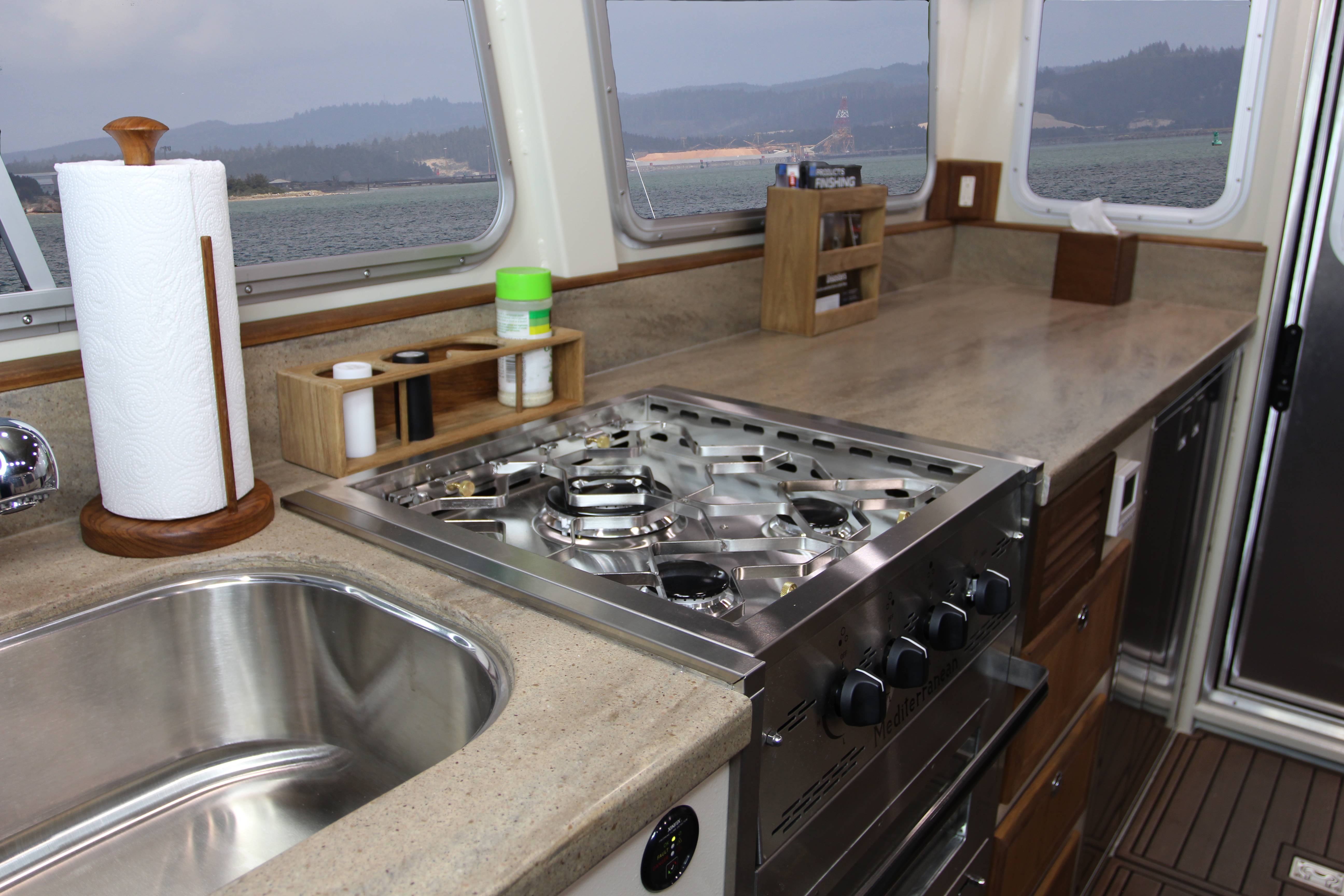

  • Galley cabinet with full height counter top.  Includes:
  • Solid surface counter
  • Teak door and drawer faces
  • Refrigerator – Freezer, Isotherm Cruise 200
  • Dickinson Mediterranean three burner propane stove / oven combo with cutting board cover
  •  Galley sink (undermount) & faucet with solid surface cover
  • Fresh and hot water system
• Port:
  • NRB Ocean Master helm chair with Shockwave S5 suspension base (QTY 2 – side by side)
  • Shockwave swivel slide (Inboard chair only)
  • “L” Shaped Dinette with solid surface table (matching all counter tops)
  • Entrance to mid berth
  • Mid berth under dinette floor.  Includes:
  • Memory foam mattress with covered upholstery
  • Outboard side cubby storage and interior hanging bar
  •  Upholstered headliner and cladding with teak trim
  • Interior cuddy window at aisle way
  • State Room – Forward Berth:
  • Memory foam mattress with covered upholstery
  • Built-in storage (under mattress), cubby side storage and hanging closet (Starboard)
  • Upholstered headliner and cladding with teak trim

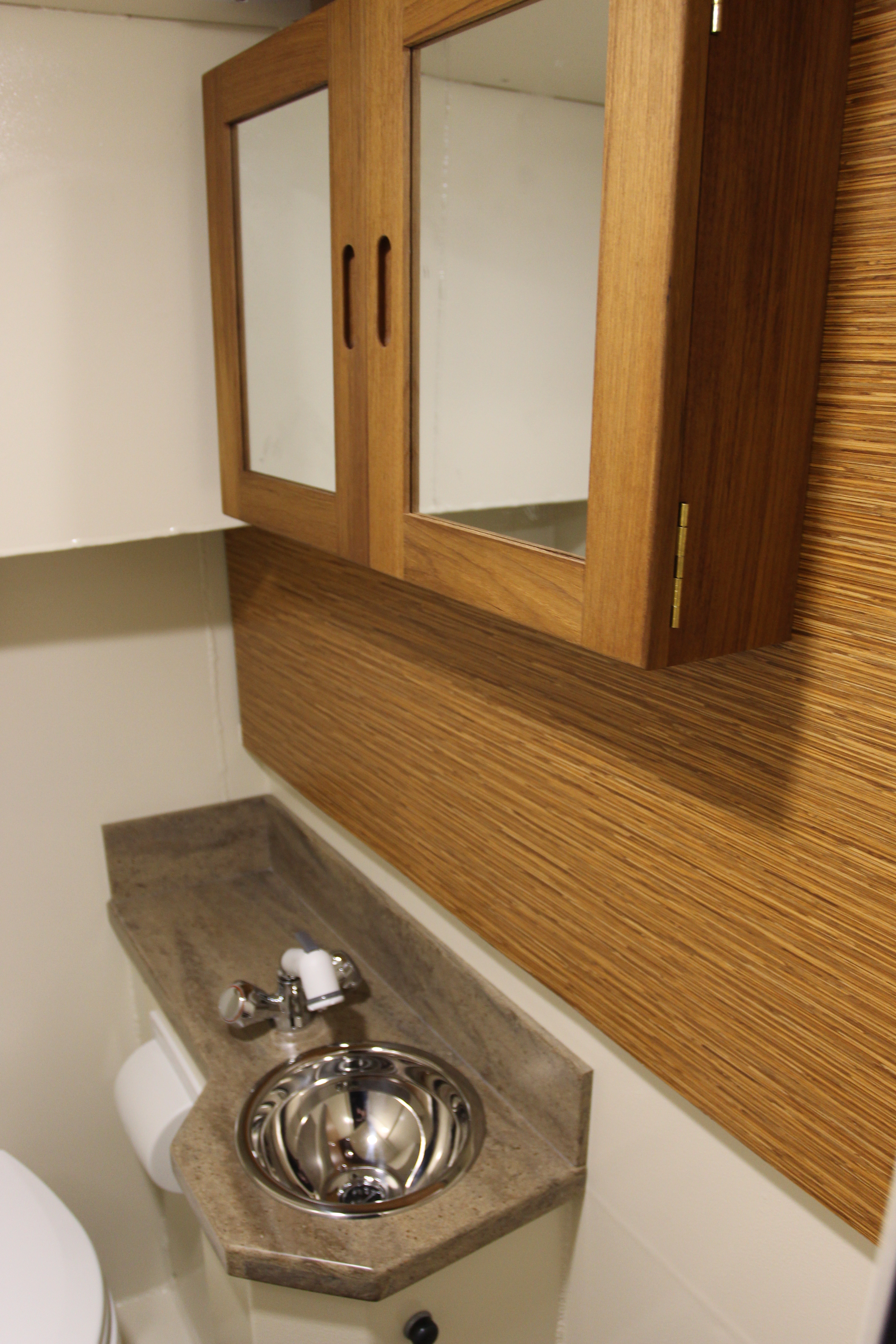

  • Stand up head.  Includes:
  • Electric toilet & covered toilet paper dispenser
  • Sink, faucet /shower combo
  • Solid surface counter
  • Teak medicine cabinet with double doors and mirrors
  • Teak head door
  • Teak floor mat

ELECTRICAL FEATURES:

• Digital switching system – CZone digital control and monitoring network.  Includes:
• Mastervolt Mass Combi 12/3000-160 (120V) Inverter / Charger
• Mastervolt MVG 12/120 Gel Battery (QTY 4)
• 50A Shore power system (AC Panel, 5 outlets, cord set, and galvanic isolator)
• Triple windshield wipers with washer tank system
• 12-volt power point and double USB power socket – (QTY 4 each)
• Dual 2000 GPH high-capacity bilge pump with auto float switches
• High water bilge alarms through CZone network
• Toilet and shower system with sump pump
• Dual trumpet horn
• High pressure wash down pump (QTY 2) – Raw & fresh water
• Windlass / Anchor Winch with dual controls
• Trim tabs
• Navigation / Anchor Lights L.E.D.
• L.E.D. Dome lights L.E.D. (QTY 10)
• L.E.D. Courtesy lights and accent strip lights
• L.E.D. Deck lights (QTY 3 – On roof top pads, 2 aft deck / 1 forward facing)
• L.E.D. Underwater lights at stern (QTY 2)
• Ceiling fans (QTY 3)
• Golden Rod dehumidifier / heater (QTY 2 – 1 cabin sole / 1 transom)
• Simrad radar, navigation, entertainment electronics and sound system

PAINT FEATURES:

• One color full side paint to chine with clear coat
• Aft deck and Cuddy trunk – Soft white over Zolatone with clear coat
• Cabin exterior and interior – Soft white over Zolatone with clear coat
• Cabin dodger and roof top – Soft white over Zolatone with clear coat
• Matson non-skid surfaces on roof top
• Exterior railing painted Lilith Charcoal
• Antifoul bottom paint

PROPULSION FEATURES:

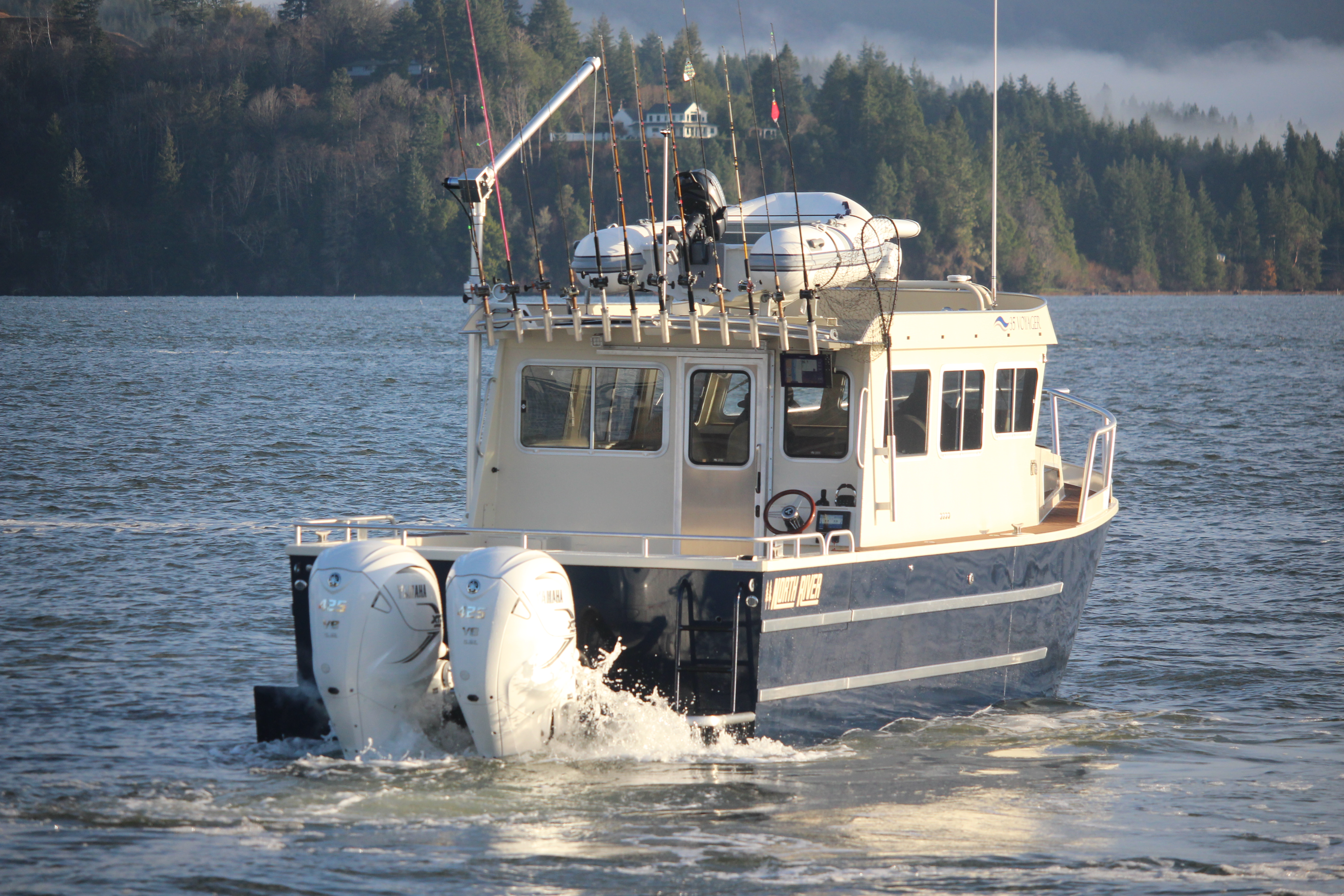

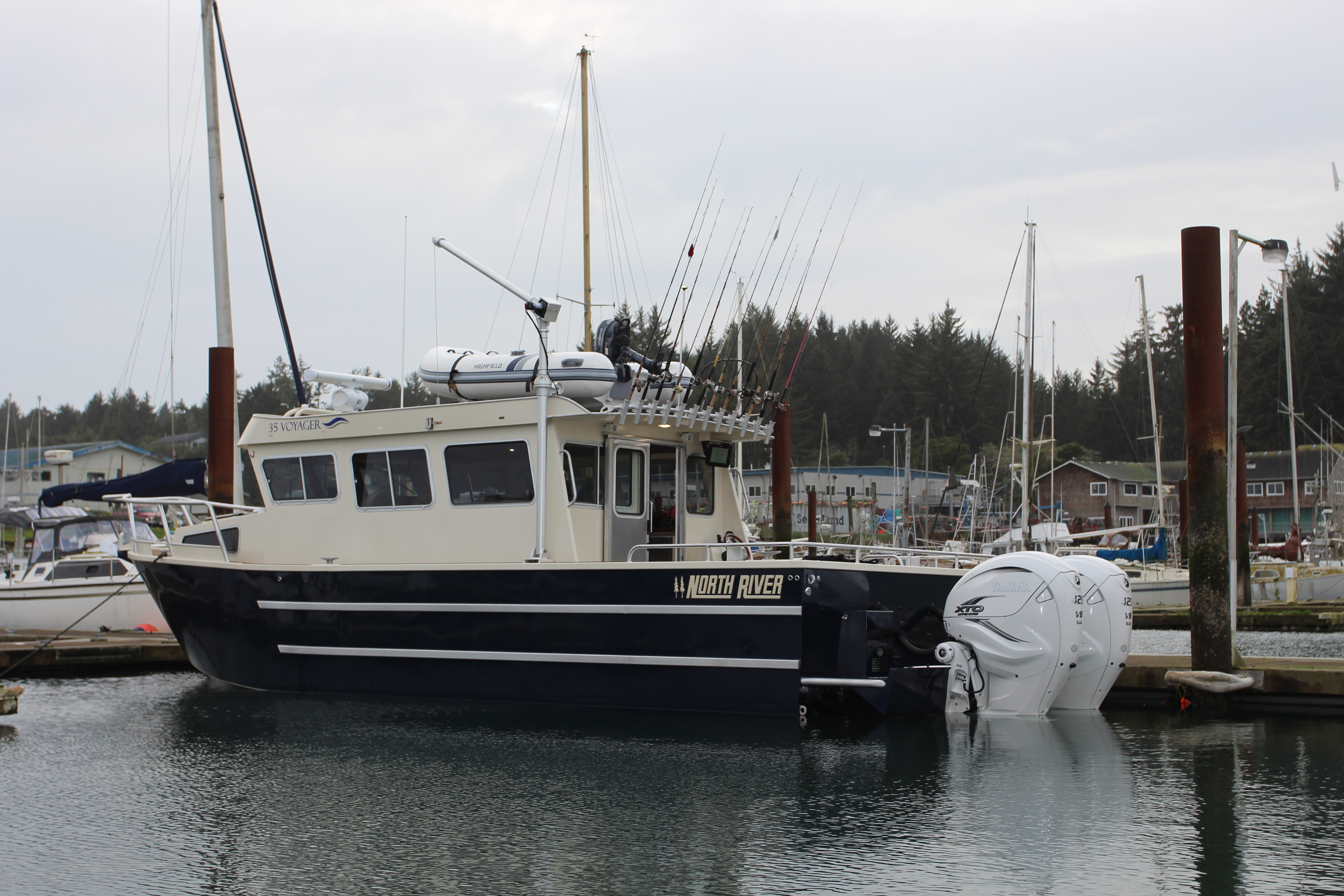

• Yamaha XF425 XTO Engine – Twins
